Line Plot from Scientific Research

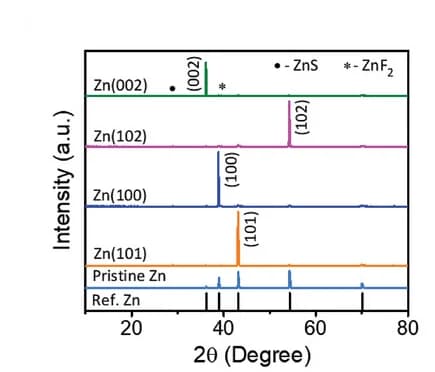

X-ray diffraction patterns for pristine Zn, Zn(101), Zn(100), Zn(102), and Zn(002) anodes in comparison with theoretical Zn (JCPDS: 03-065-5973,P63/mmc(194), hexagonal structure). The symbols "•" and "∗" denote the ZnS(111) and ZnF2(111) phases with the reference JCPDS: 05-0566 (F-43m(216), ZnS, cubic structure) and 07-0214 (P42/mnm(136), ZnF2, tetragonal structure).

DOI
