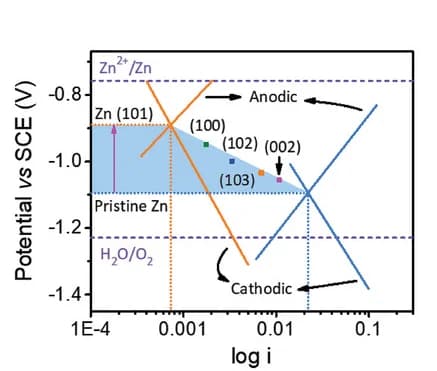

Evans diagram for electrochemical corrosion of pristine and preferred (101) orientation of Zn. The dotted blue and orange lines denote the Zn dissolution kinetics (including corrosion current) and electrochemical redox potential of pristine and designed Zn(101) anodes, respectively. Cathodic and anodic Tafel slopes are shown by solid orange and blue lines. The blue-shaded area defines the range of electrochemical potentials and current distributions from pristine to Zn(101) or other Zn(100), Zn(102), Zn(103), and Zn(002) anodes.
