Scatter Plot from Scientific Research
CC-BY
0
Views
0
Likes
Citation

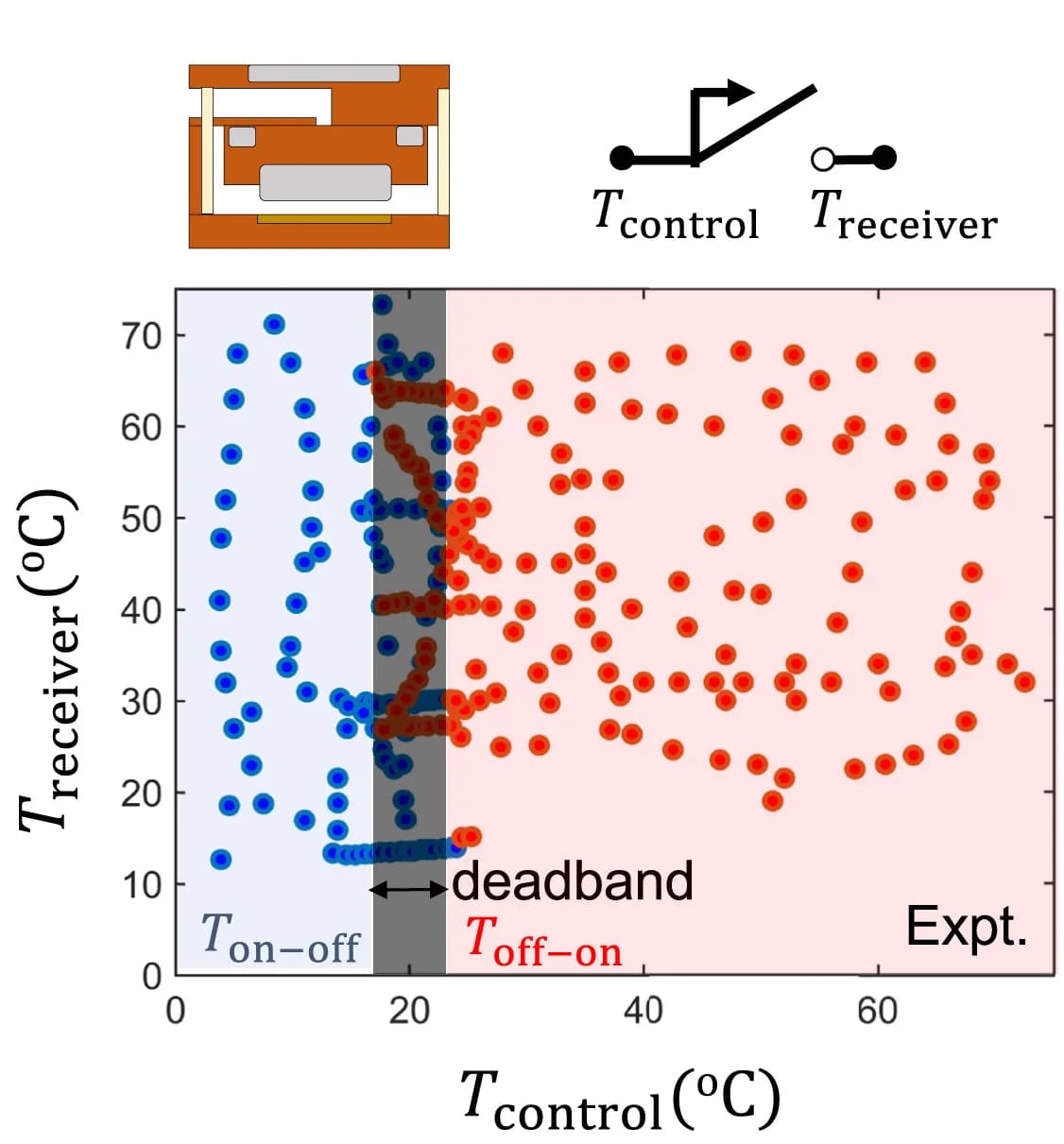

Our experimental measurements (points, color indicating ON or OFF state) show that the thermomagnetic device is an asymmetric thermal regulator as in (B), because the state is determined solely by Tcontrol. In the deadband region between Ton-off and Toff-on, the state of the regulator depends on the thermal history of the device.
#Scatter Plot#Thermomagnetic Device#Asymmetric Thermal Regulator#Temperature Control#Experimental Measurements
