Line Plot from Scientific Research

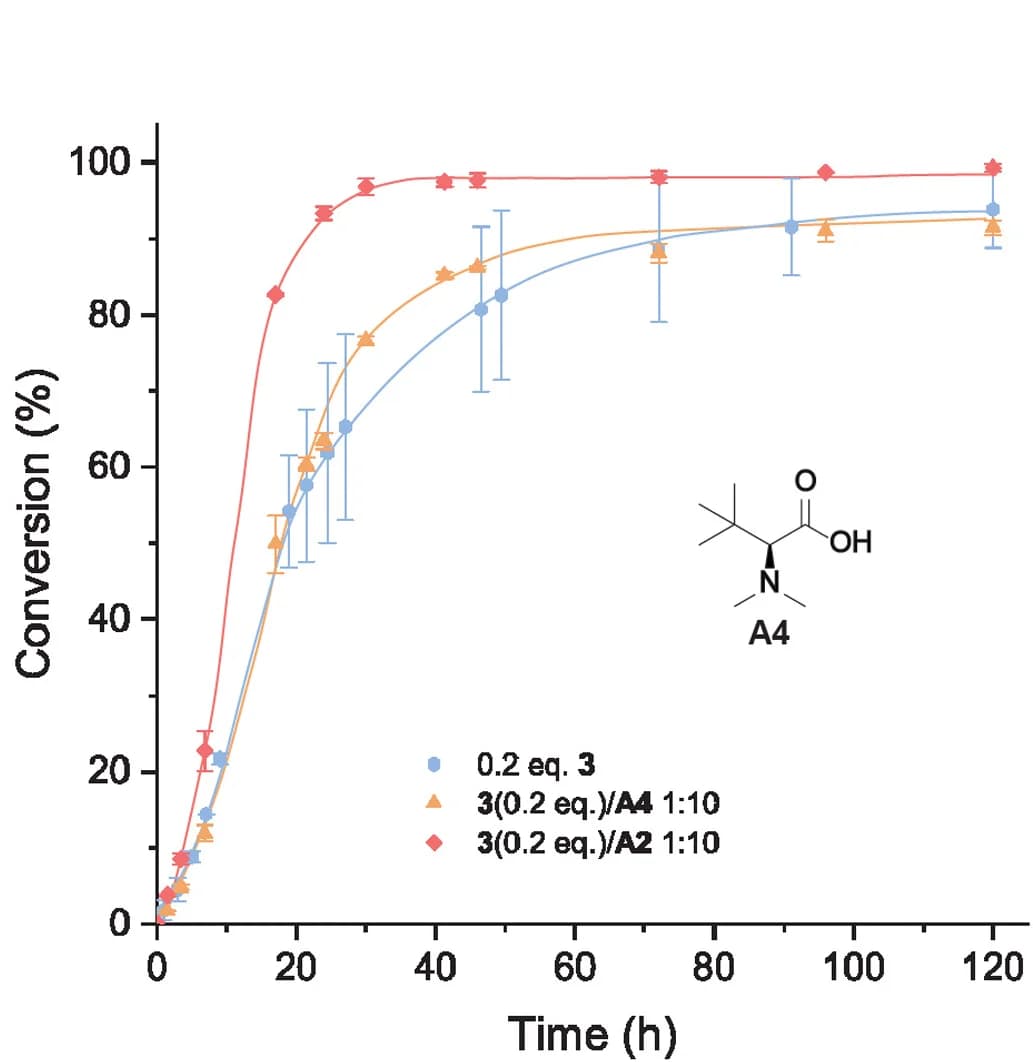

Comparison of the 1H NMR conversion of 4 between the use of 0.2 equiv 3 with an excess of A2 versus an excess of A4 (10 equiv with respect to 3) in PM16 micelle degradation with 10 mM H2O2. All curves are drawn as a guide for the eye. Error bars are the standard deviation of duplicate experiments. See also Figures S1–S4.
