Line Plot from Scientific Research

Open access visualization of Line Plot, Simulation, Arms, Actin Flows, Cell Length
CC-BY
0
Views
0
Likes
DOI

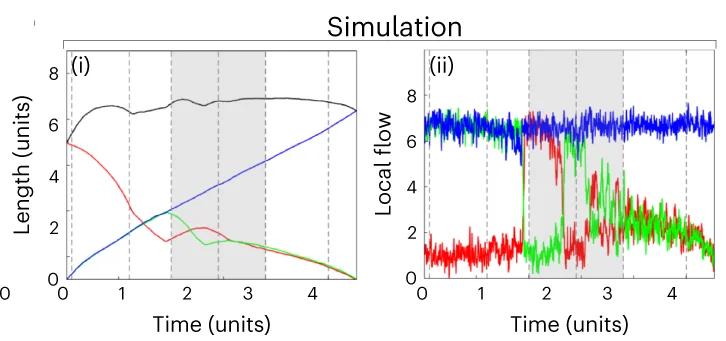

Simulation with ( β , σ ) = (6.7, 0.5). Arm length (i). Local actin flows (ii). Red, green and blue curves indicate arms 1, 2 and 3. The black curves indicate the total cell length. Grey sections are regions where the local polymerization speed of the losing arms display seesaw oscillations. Grey dashed lines in a correspond to the time-lapse images in d and the arrows in c . Grey dashed lines in b correspond to the pictograms in e .
