Box Plot from Scientific Research

Open access visualization of Box Plot, Scatter Plot, Histone PTM, Mass Spectrometry, Biological Replicates
CC-BY
3
Views
0
Likes

Citation

DOI: 10.1038/s41588-023-01476-x

DOI

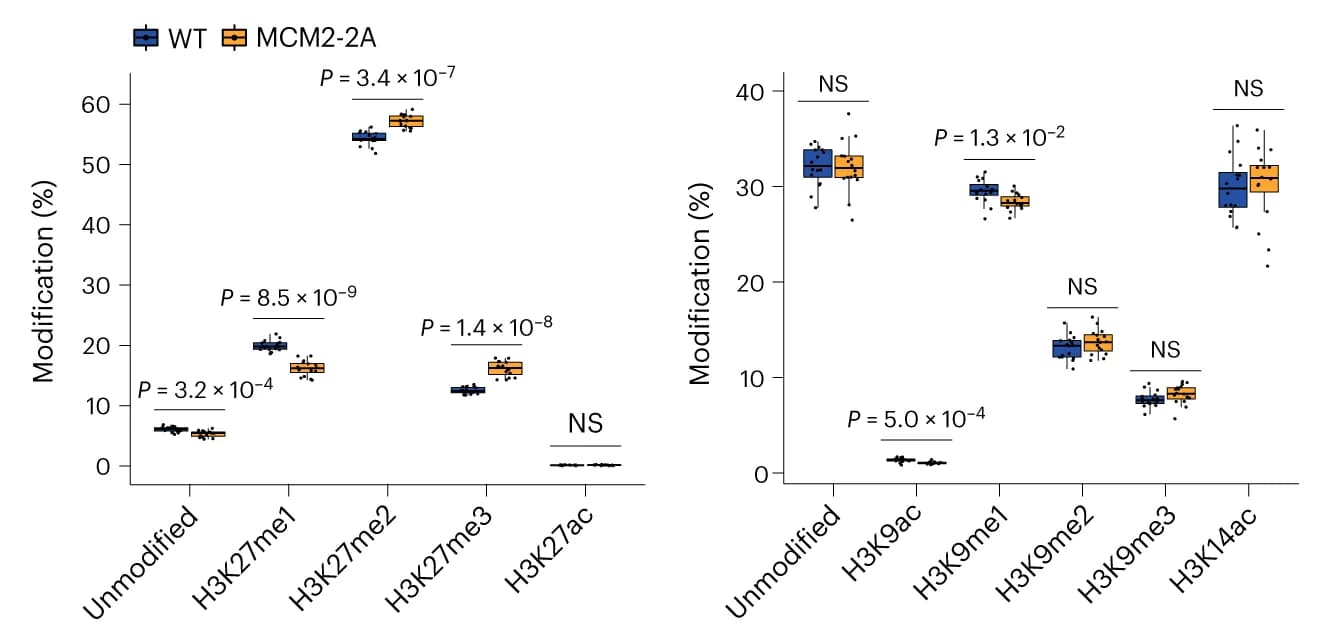

Global histone PTM levels quantified by mass spectrometry. n = biological replicates; WT#1 (n = 4), WT#2 (n = 4), WT#3 (n = 4), WT#4 (n = 4), MCM2-2A#1 (n = 4), MCM2-2A#3 (n = 4), MCM2-2A#4 (n = 4) and MCM2-2A#5 (n = 4). Two-sided t test. Lines indicate median, boxes represent first and third quartiles and whiskers extend 1.5 IQR.

#Box Plot#Scatter Plot#Histone PTM#Mass Spectrometry#Biological Replicates#T test#Median#Quartiles#IQR
