Box Plot from Scientific Research

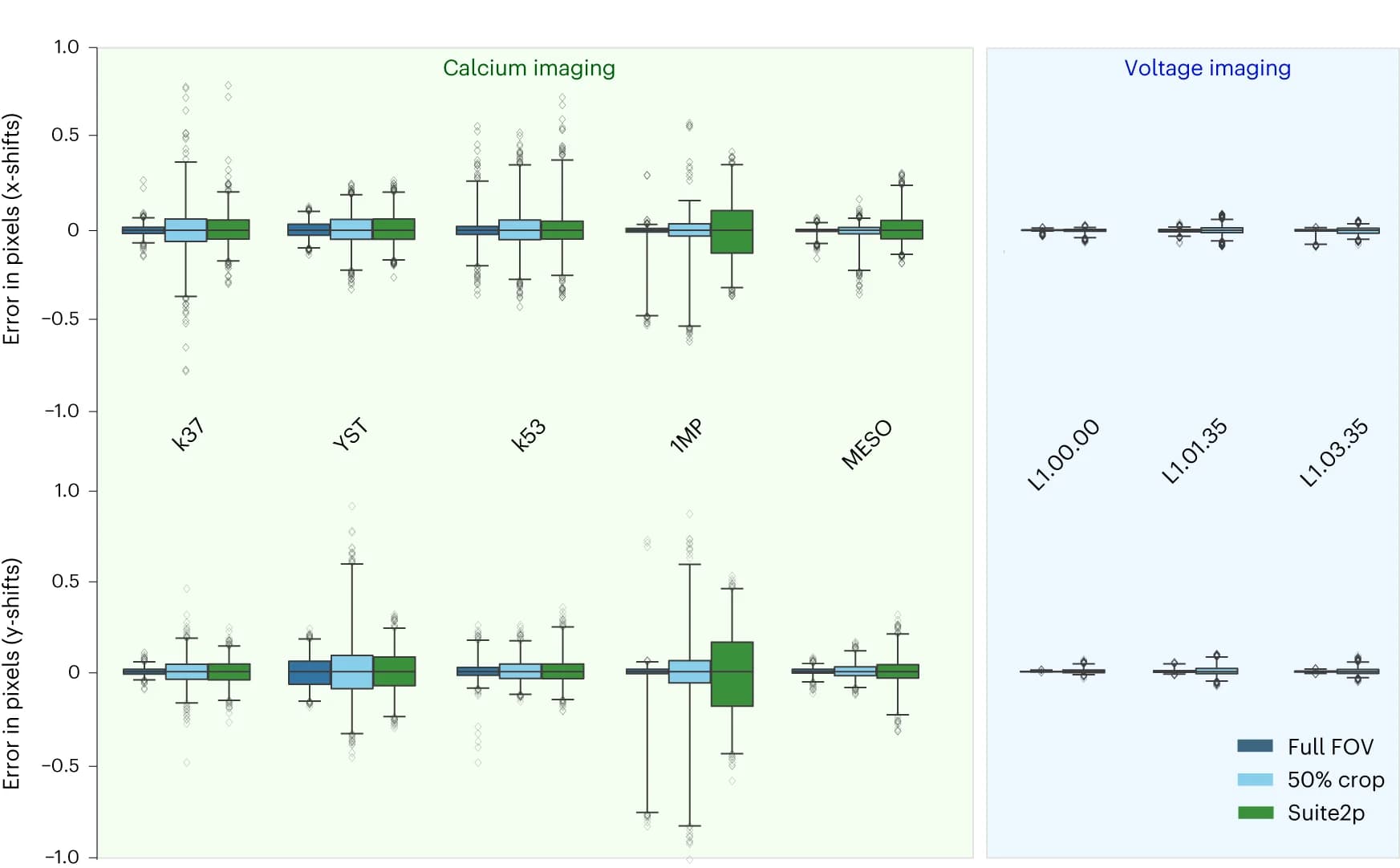

Box-and-whisker plots representing discrepancies in estimated x (top) and y (bottom) shifts of FIOLA and subpixel Suite2p, using NoRMCorre as the ground truth. FIOLA was run without cropping (dark blue) and with a central crop (light blue). The box spans the 1st to 3rd quartiles of the data with a line at the median, while the whiskers represent data from the 1st and 99th percentiles. Diamonds represent outliers. n = 1,500 frames for k37, YST, k53 and MESO; n = 1,000 frames for 1MP; n = 10,000 frames for all voltage imaging movies.
