Scatter Plot from Scientific Research

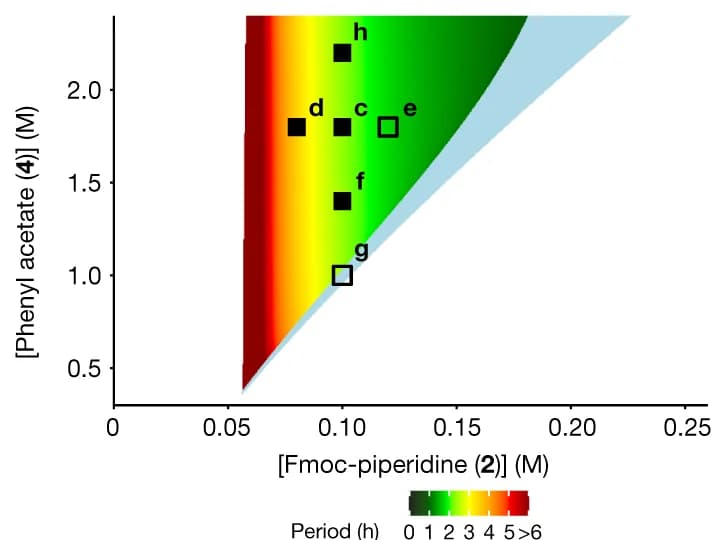

Oscillation space predicted by the model: the region coloured by a gradient from red to green indicates the ranges of 4 and 2 that are predicted to support sustained oscillations with [ 3 ] = 30 mM, [ 5 ] = 5 mM and a space velocity of 10 -4 s -1 (defined as flow rate divided by CSTR volume); colour coding shows the predicted period (h). In the light blue region, dampened oscillations are predicted to take place and in the uncoloured region no oscillations occur. Filled squares indicate where experiments found sustained oscillations, and open squares where dampened oscillations were observed.
