Bar Plot from Scientific Research

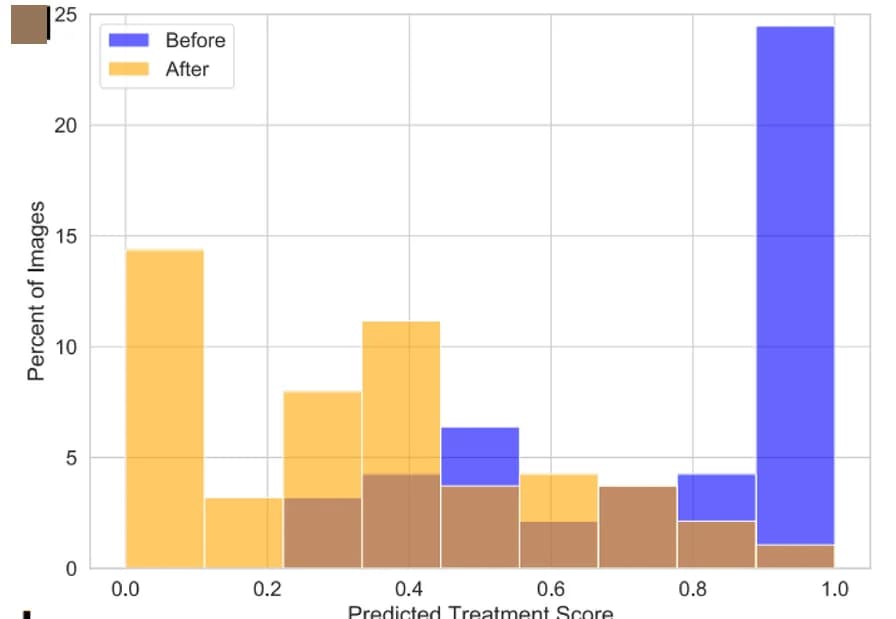

Fractional distribution of Predicted Treatment Score. Color represents the actual group (after or before) to which the image corresponds. Of note, NeuriteNet classifies an image as “After” if the Predicted Treatment Score is less than 0.5 and to “Before” if more than 0.5. NeuriteNet classified most images correctly (the small orange bar at Predicted Treatment Score of 0.85 (appears brown as it is overlaying the blue) represents a small fraction of After images falsely classified as Before).
