Line Plot from Scientific Research

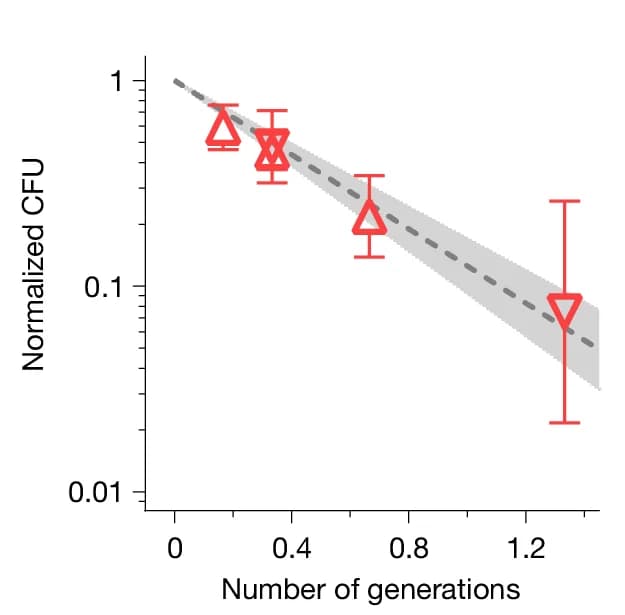

Relationship between exposure time to ceftriaxone to number of generations and Salmonella survival for different proliferation rates and exposure times (geometric mean and geometric s.d.; upward triangles, division rate 0.17 h −1 and exposure for 1 h ( n = 4), 2 h ( n = 4) or 4 h ( n = 9); downward triangles, 4 h exposure and division rates 0.08 ( n = 5) or 0.33 h −1 ( n = 5)). The dashed line represents a monoexponential fit and the shaded area shows the 95% confidence interval.

DOI
