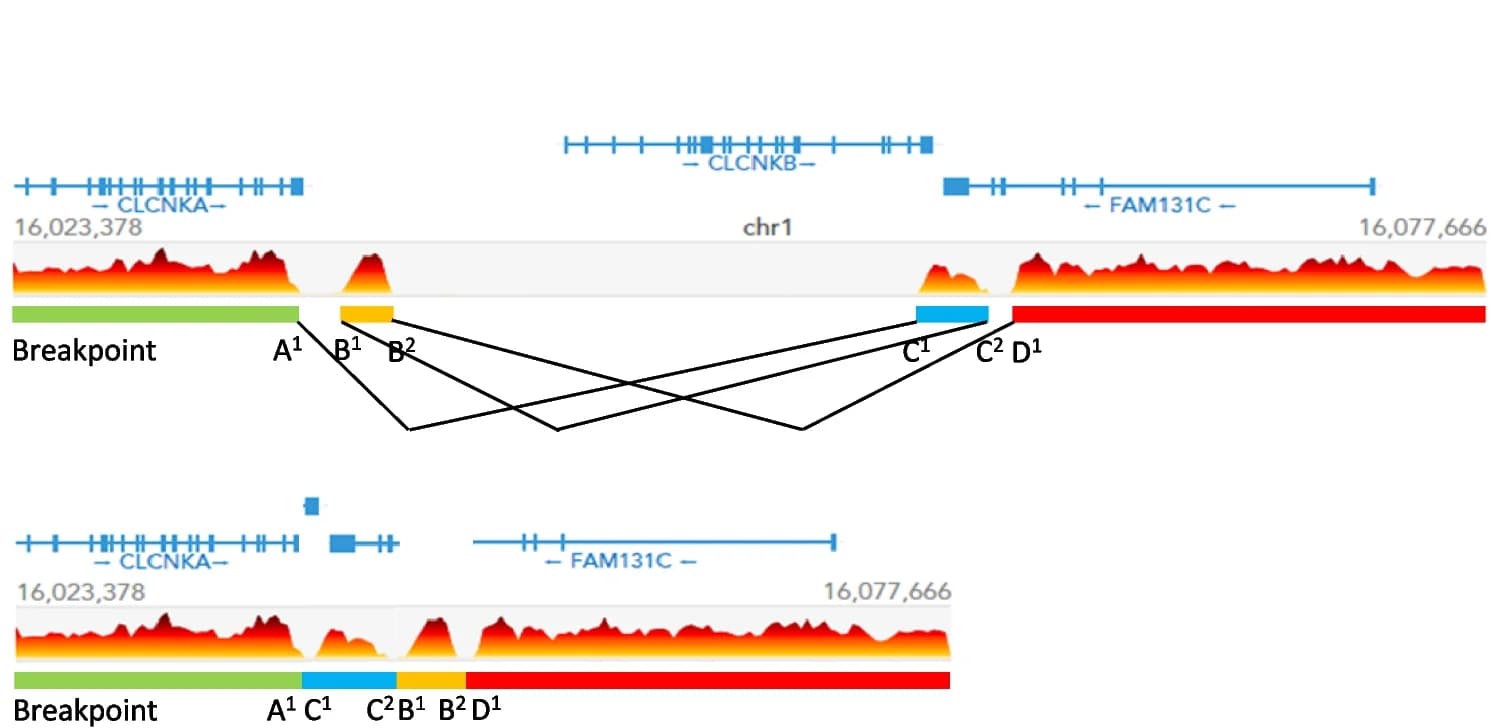

D Reconstruction of the genomic structural rearrangement of patient P1.2. The three breakpoint regions result in a rearrangement of fragment B and fragment C and the deletion of the genomic DNA in between these fragments. Genomic DNA Fragments were rearranged according to the identified breakpoints. New genomic rearrangement consisting of fragment A-C-B-D. The common sequence transposition haplotype equates to the transposition of fragment C. Genes are indicated in blue with exons as blue vertical bars. Gene orientation is indicated by blue arrows. Colour coding of genomic fragments A (green), B (orange), C (blue), and D (red). Genomic sequence coordinates refer to the hg38 human reference.
