Workflow from Scientific Research

Open access visualization of Workflow, Illustration, HERC2, domain structure, RCC1-like domains
CC-BY
1
Views
0
Likes

Citation

DOI: 10.1016/j.cell.2023.06.016

DOI

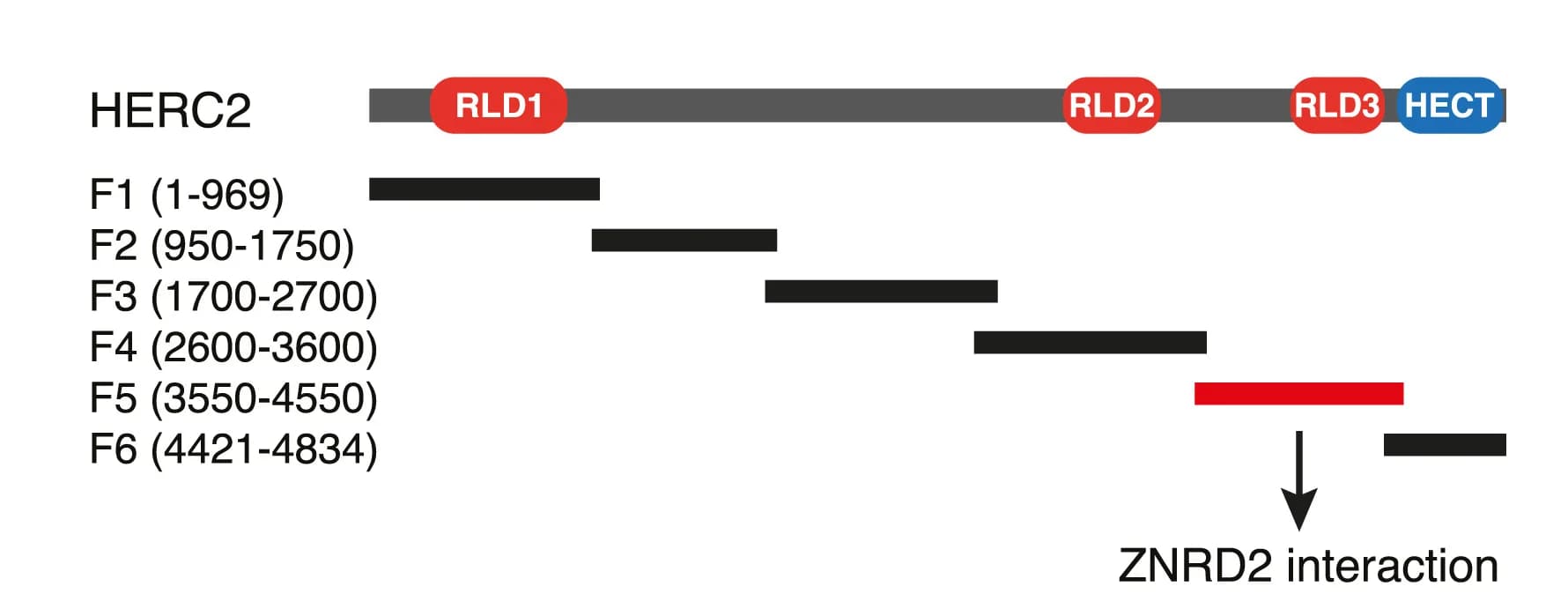

Diagram illustrating the domain structure of human HERC2 (4,834 amino acids) and overlapping HERC2 fragments tested for interaction with ZNRD2 inFigure S4G. HERC2 contains three RCC1-like domains (RLD1–3) and a C-terminal HECT E3 ligase catalytic domain (HECT). The HERC2 fragment containing RLD3 (F5; highlighted in red) interacts with ZNRD2 (seeFigure S4G).

#Workflow#Illustration#HERC2#domain structure#RCC1-like domains#HECT E3 ligase#ZNRD2
