Line Plot from Scientific Research

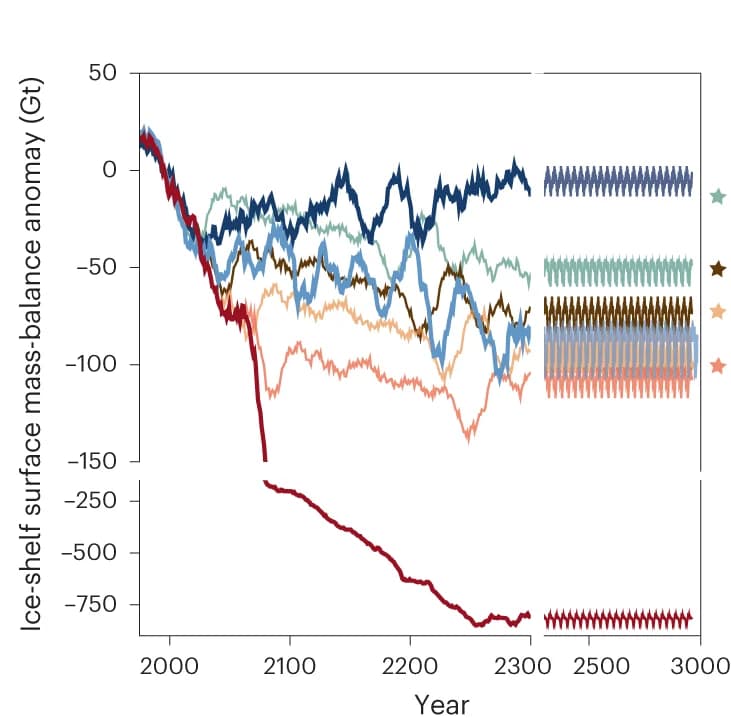

Antarctic ice-shelf surface mass-balance anomalies. Note the shift in the time axis at the year 2300 in all panels and the shift in y axis in panel c at -150 Gt. All values are relative to the historical period 1995-2014 and 20 yr running average. From year 2300 onwards, the forcing from 2270 to 2300 is continuously repeated.
