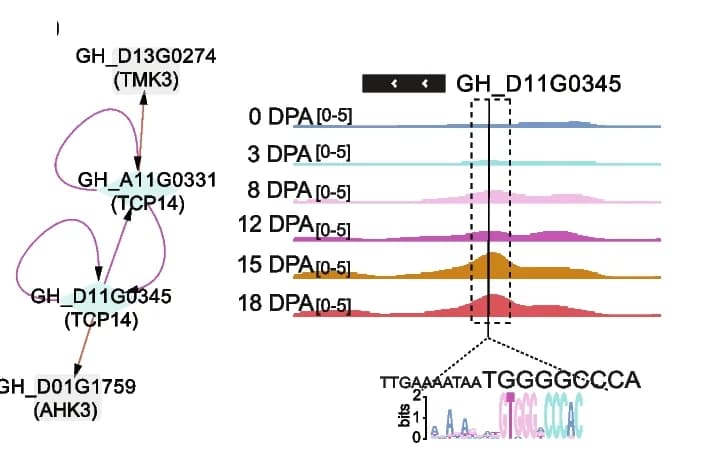

Overview of DNase-seq tracks for representative TF interactions in cotton TF regulatory network. The TCP14 recognition motif “GTGGGNCCCAC” (large coded) was identified from the upstream DHSs of GH_D11G0345 . The CDC5 recognition motif “CTCAGC” (large coded) was identified from the upstream DHSs of GhMYB25 . To the left of DNase-seq tracks is the subnetwork where GhMYB25 and GhTCP14 . Diamonds represent TFs and rectangles represent genes. Dotted box indicates DHS regions, black line indicates CDC5 and GhTCP14 binding site.
