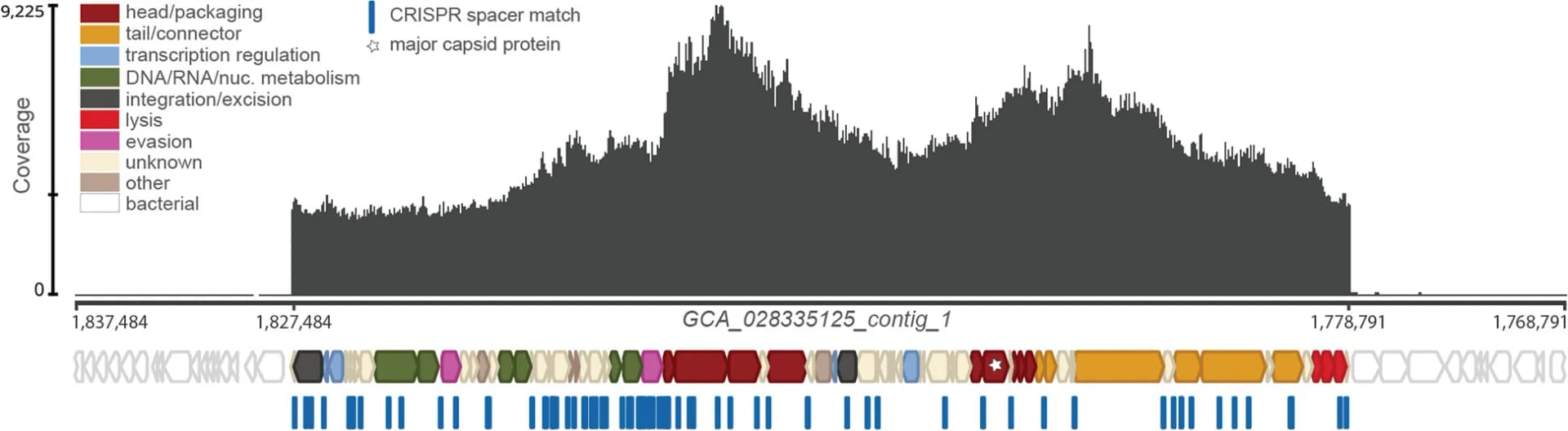

Protected phage DNA is present in Pg cultures. Coverage (dark gray plot) of nuclease-protected DNA sequences from a filtered 20-day-old ATCC 49417 culture mapped onto a section of the ATCC 49417 genome that was assembled from the same untreated, 1-day-old culture. An ~ 49 kb spike in coverage, with maximum 9225 x coverage (indicated by the scale on the left, middle hash mark notes mean coverage), corresponds with the region of phage005b in GCA_028335125_contig_1. Colored block arrows represent phage genes predicted by Cenote-Taker2 [ 81 ] (major capsid protein marked with star), while white block arrows represent host genes predicted by Bakta [ 78 ]. CRISPR spacer matches to phage005b found in other Pg , predicted by CCTyper [ 55 ] and mapped with Bowtie [ 56 ] (100% identity), are represented by blue dash marks
