Line Plot from Scientific Research

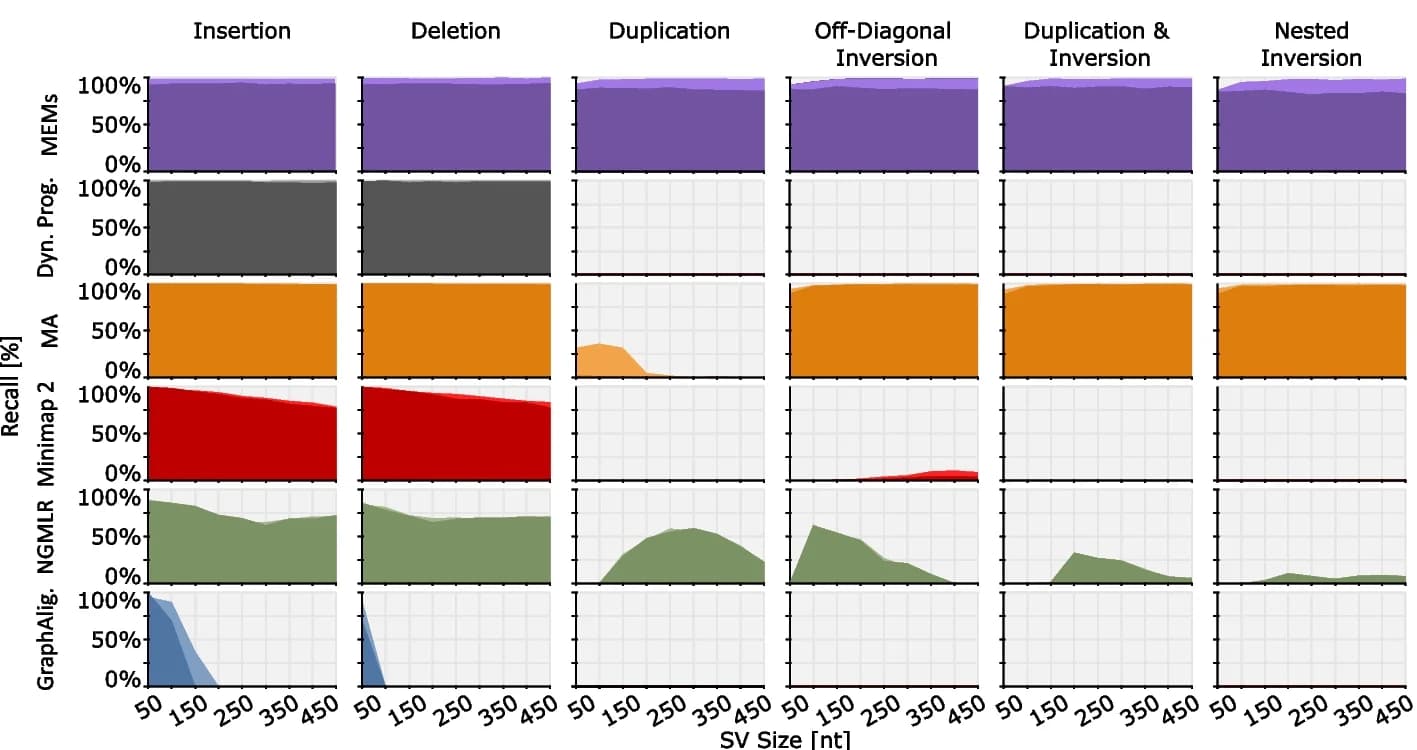

Rediscovery rate as a function of the SV size (see subfigure A ) for the various kinds of SV in A . Each diagram shows two curves. Here, each point of a curve represents an average measurement for 1000 query sequences. The lighter-colored areas show recall rates for idealized error-free queries, while the darker areas report rates for simulated PacBio CCS reads. The diagrams for Dynamic Programming show rediscovery rates for banded global Dynamic Programming with two-piece affine gap costs. Here, the global Dynamic Programming is merely applied to the reference section that a query originates from
