Line Plot from Scientific Research
CC-BY
0
Views
0
Likes
Citation

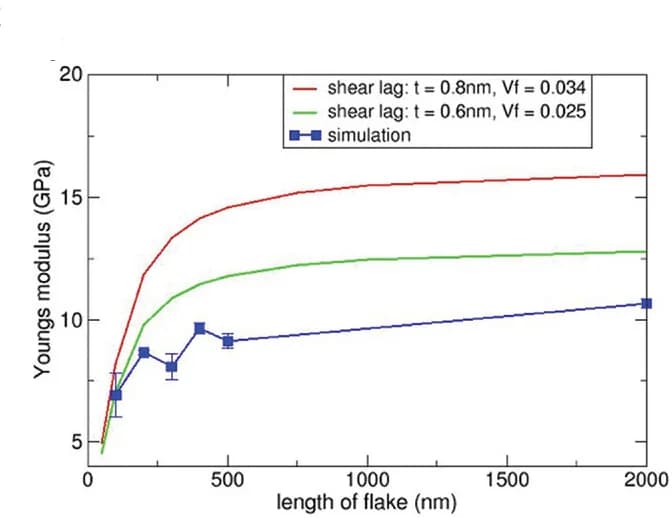

The computed Young's modulus for GO-composites as a function of ribbon length (blue). The shear-lag predicted values are also shown for different thickness of the GO flake (and the corresponding volume fraction). In both cases, the computed Young's modulus is below that predicted by the shear-lag model.
