Heatmap from Scientific Research
![Learn How to Make Heatmap for Your Research Paper Open access visualization of Heatmap, fs-TAS, [2]Grid, Benzonitrile, Heat map](https://i.plottie.art/subplots/10.1002_adma.202302664/adma202302664-fig-0005_a.webp)
CC-BY
0
Views
0
Likes
Citation

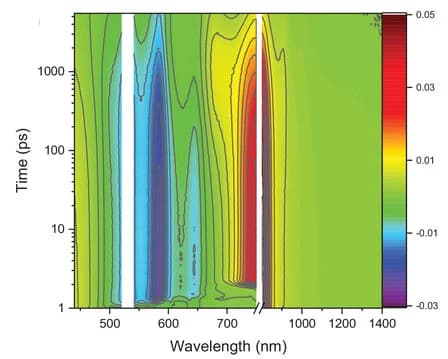

fs-TAS of [2]Grid in argon-saturated benzonitrile. Left: heat map of fs-TAS raw data obtained at 530 nm photoexcitation with time delays up to 5500 ps. Right: evolution-associated spectra showing the singlet excited state (S1) (black), the relaxed singlet excited state mixing with charge transfer (S1)relCT(red), and symmetry-broken charge-separated state SB-CS (blue). Right: Respective population kinetics. Note that SB-CS is not completely deconvoluted on this time scale.
#Heatmap#fs-TAS#[2]Grid#Benzonitrile#Heat map#Singlet Excited State#Charge Transfer#Charge-separated State#Population Kinetics
