Heatmap from Scientific Research

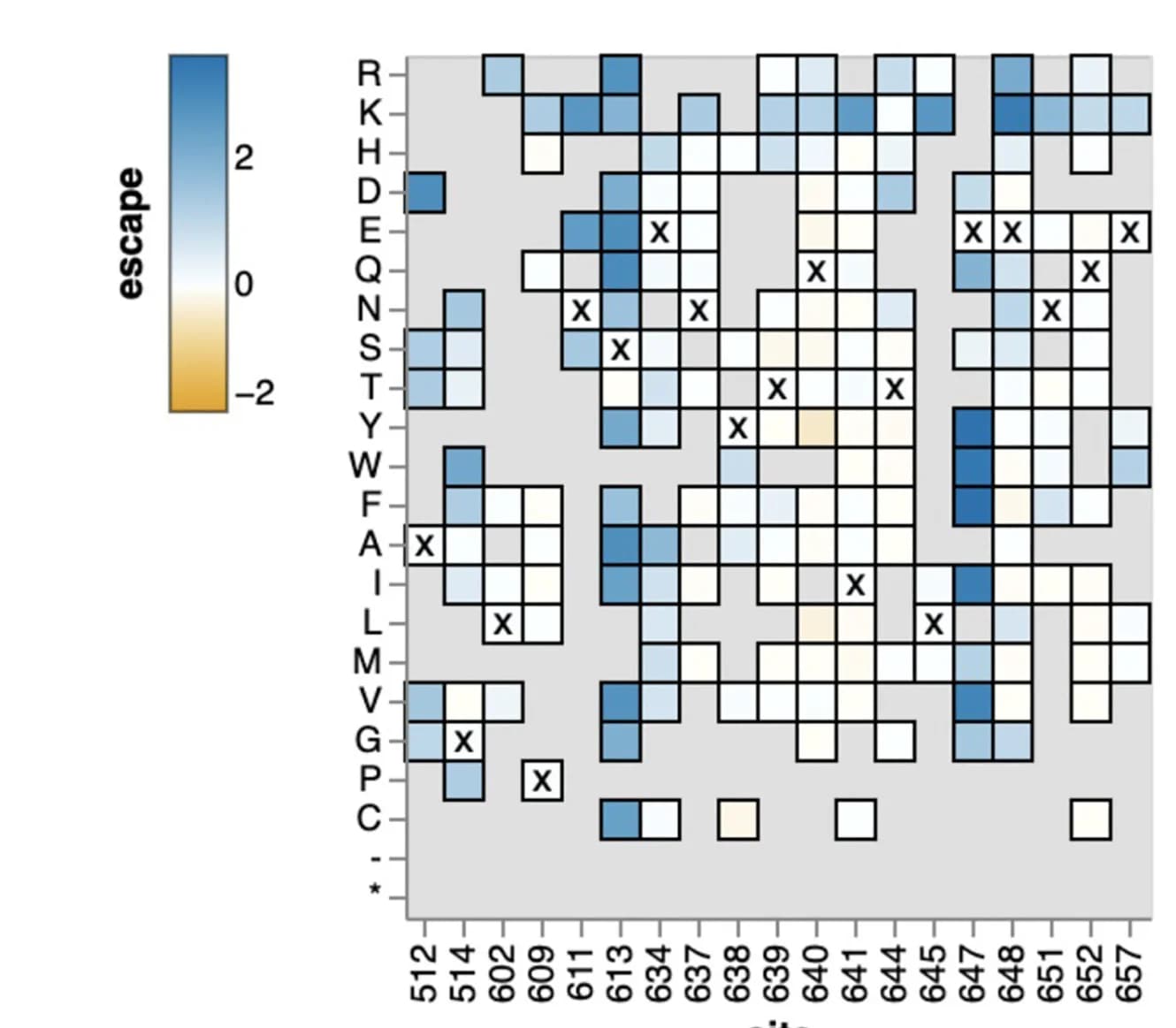

Heatmap of effects of individual mutations at key sites of escape. Residues marked with X are wild-type residues in BF520. Residues grayed out are not present in the variant libraries, typically because they are deleterious for Env function. Seehttps://dms-vep.github.io/HIV_Envelope_BF520_DMS_CD4bs_sera/PGT151_escape_plot.htmlfor an interactive version of the site and mutation escape plots.
