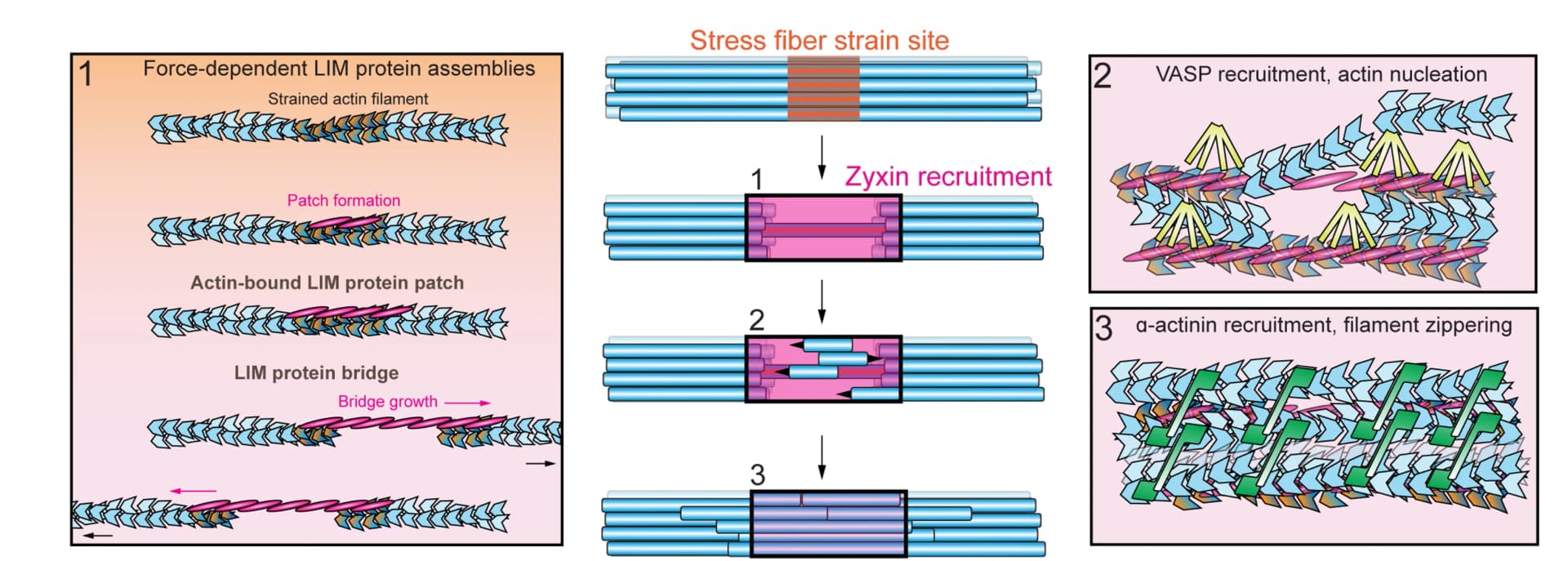

Conceptual model of zyxin-mediated stress fiber repair. Center panel illustrates overall network-scale repair, while left and right boxes display detailed views of protein components. Actin is displayed in blue (unstrained) and orange (strained); zyxin, magenta; VASP, yellow; -actinin, green. See alsoFigure S7andTable S1andVideo S7.
