Line Plot from Scientific Research

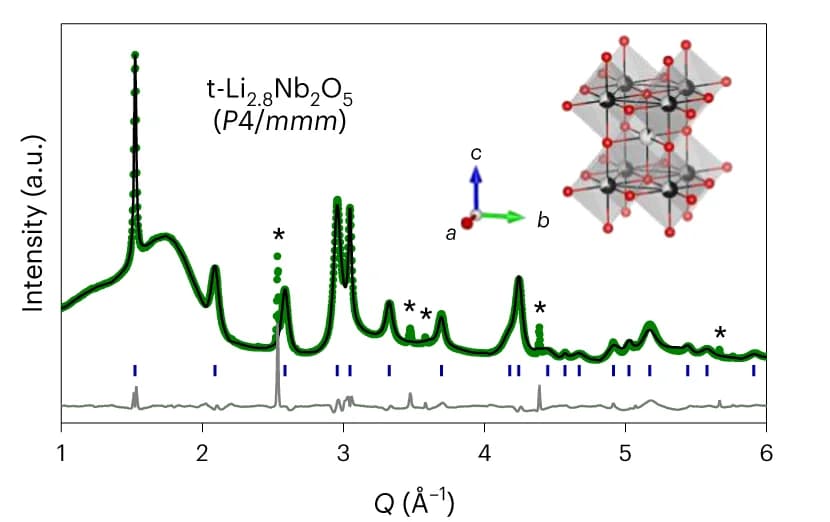

Rietveld refinement of an in situ SXRD pattern measured at 5 mV using the t-phase. The in situ cell produces peaks marked as *. Green circles, black line and grey line represent the observed, calculated and difference patterns, respectively. Blue vertical bars represent the Bragg position. The black spheres, red spheres and grey polyhedra in the unit cell denote Nb ions, O ions and octahedra (NbO6), respectively. Li positions are not considered in all refined structures due to the low scattering amplitude of Li ions.
