Line Plot from Scientific Research

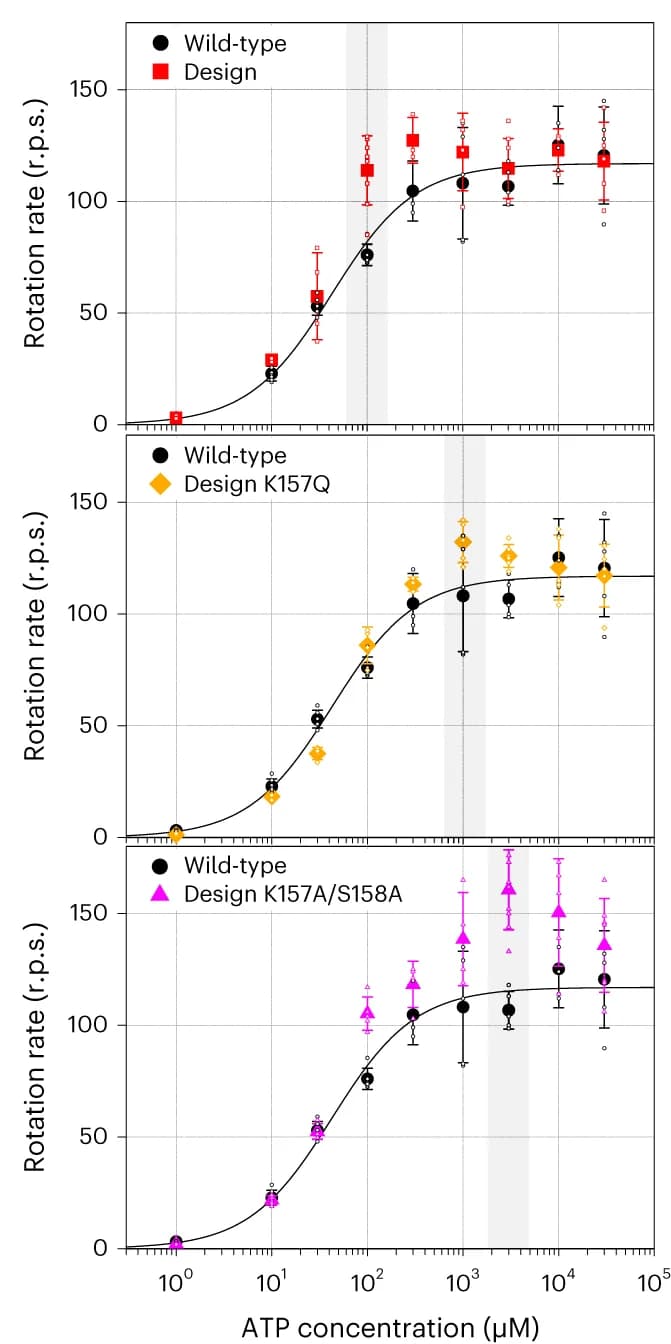

[ATP] dependence of rotation rates for the wild-type (black) 21, the designed V1 (red), the design mutant K157Q (orange) and the design double-mutant K157A/S158A (magenta). The [ATP] at the most accelerated rotation is highlighted in grey. The rates were plotted with averaged values using three molecules or more (Supplementary Table 1) and the error bars represent the s.d. The black lines are the fitted curves to the Michaelis-Menten equation for the wild-type rotation rates.

DOI
