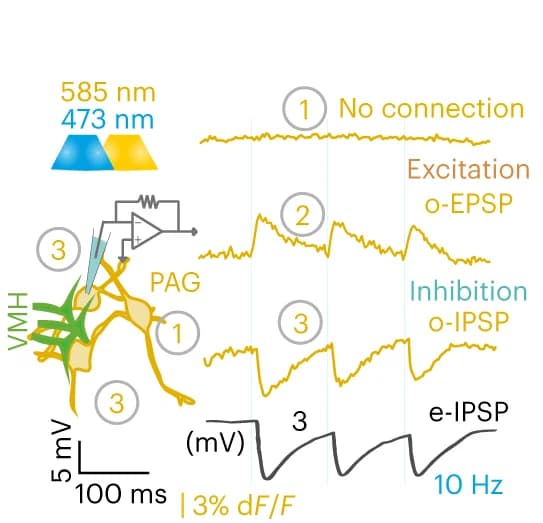

Scheme of simultaneous all-optical voltage imaging and whole-cell patch-clamp recording (left). O-phys traces (average of seven traces, gold) of three neurons (1, 2 and 3) from top to bottom: neuron with no connection (1), neuron with excitation (o-EPSP) (2) and inhibition (o-IPSP) (3), and e-phys trace (average of seven traces, black) of the whole-cell-recorded neuron (3) confirmed inhibitory postsynaptic responses (e-IPSP) (right).
