Scatter Plot from Scientific Research

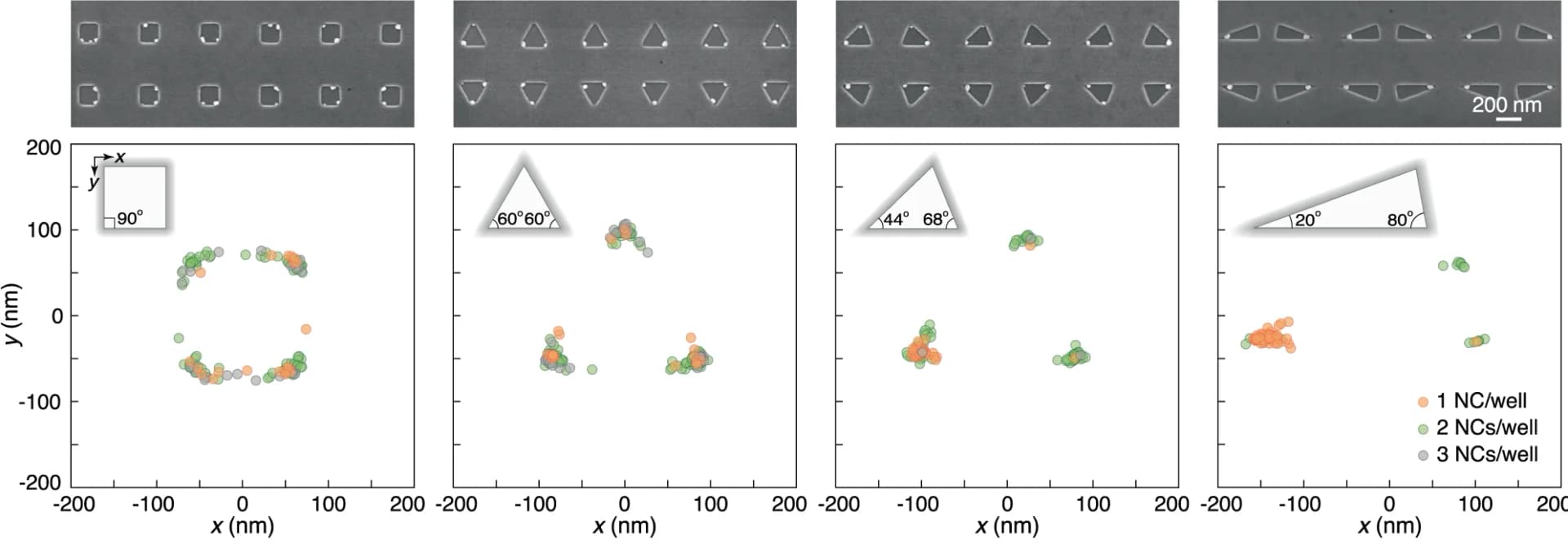

Representative SEM images (top), and plots of nanocrystal (NC) position with respect to well centroids cumulated over 96 wells (bottom), for templates of four different well shapes, and common volume (150 2 nm 2 area and 22 nm thickness) and sidewall contact angle ( θ = 50°). From left to right, well shapes are square, equilateral triangle, (44°, 68°, 68°) triangle, and (20°, 80°, 80°) triangle. The colors indicate the presence of different numbers of nanocrystals within the well.
