Venn Diagram from Scientific Research

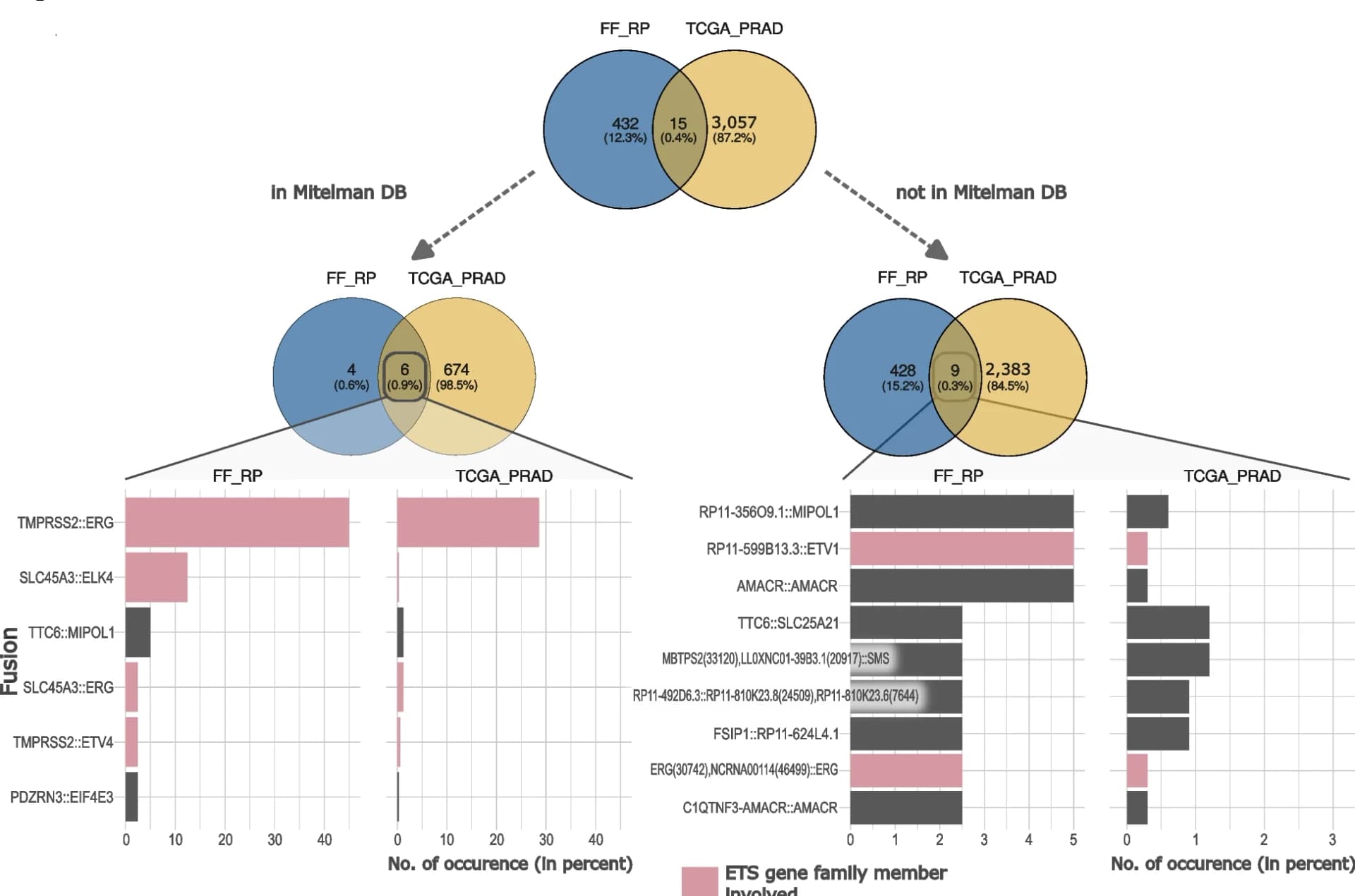

The Venn diagrams show the overlap of gene fusions between the two cohorts for all fusions (top), those fusions that are described in the Mitelman DB (left), as well as those that are not described (right). The overlap of fusions are shown in bar plots below, with their frequency in percent. Red: gene fusions that involve genes from the ETS family.
