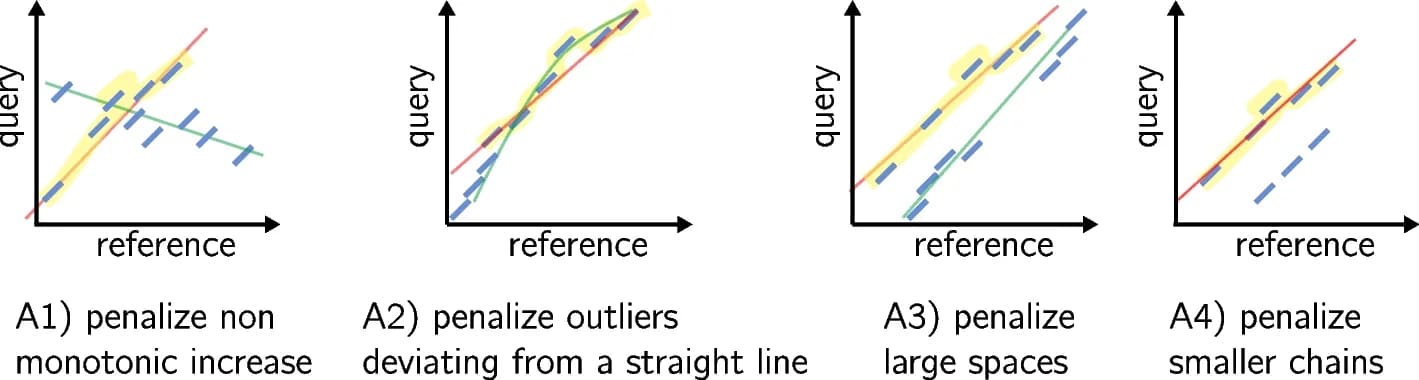

An illustration of the different constraint taken into account in the gap score functions. The reference axis shows a genome region of interest where anchors were found, not the whole reference. A1–A4 correspond to items in the text in the “ A dynamic programming problem ” section. Anchors are showed in blue. The selected chain with respect to the described constraint is highlighted in yellow and a line approximately passing by its anchors is showed in red. The longest chain is covered by a green line if it was not selected
