Line Plot from Scientific Research
CC-BY
0
Views
0
Likes
Citation

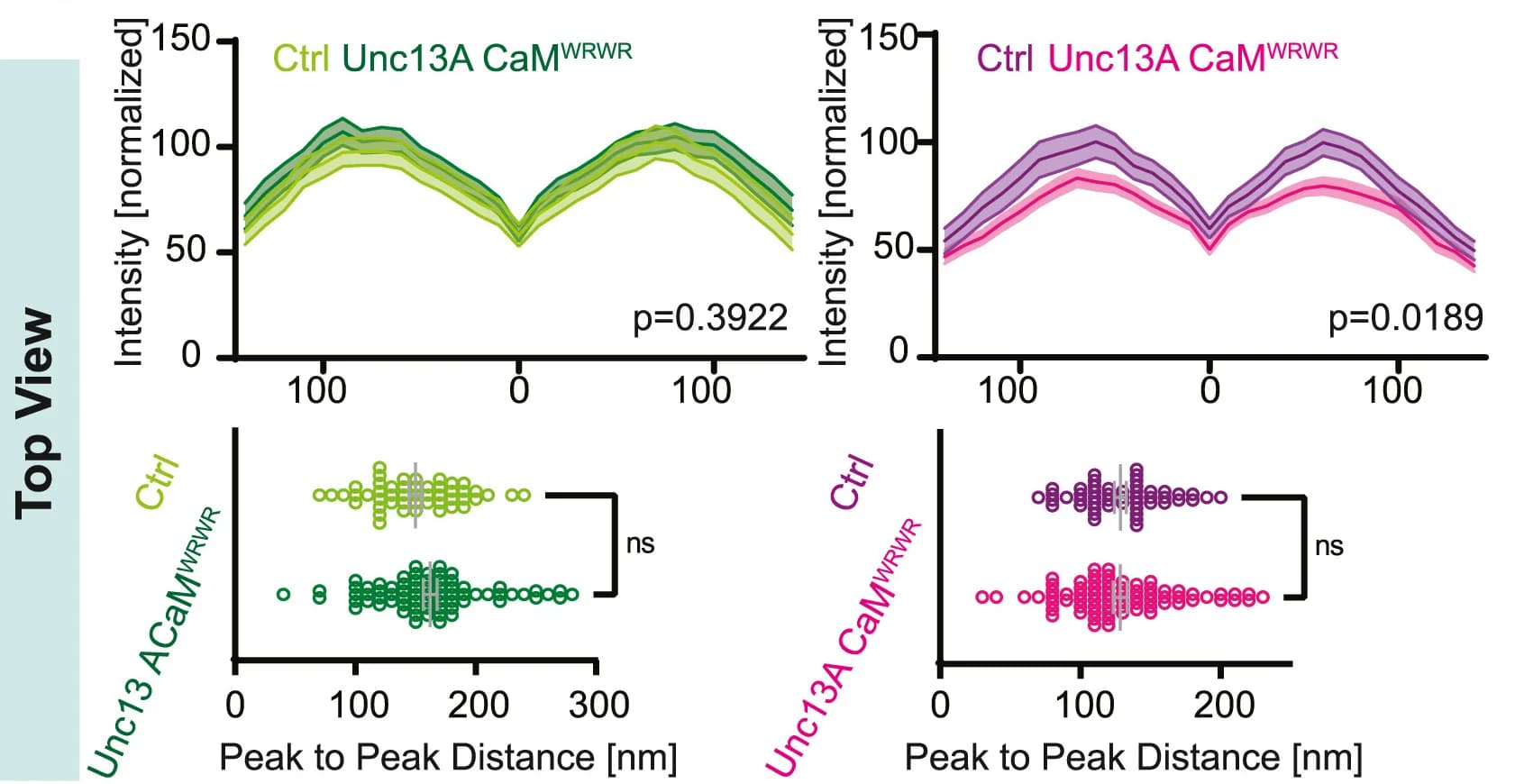

Top-view fluorescence line profiles (aligned to BRP and Unc13A ring centers and normalized to the highest average intensities in the control genotype) of BRP (top, left) and Unc13A (top, right) for the displayed genotypes. Bottom: quantification of peak-to-peak distances (ring diameters) of BRP (left) and Unc13A (right) rings for the displayed genotypes. For quantification of the maximum intensities seeFigure S3.
