Stacked Bar Plot from Scientific Research

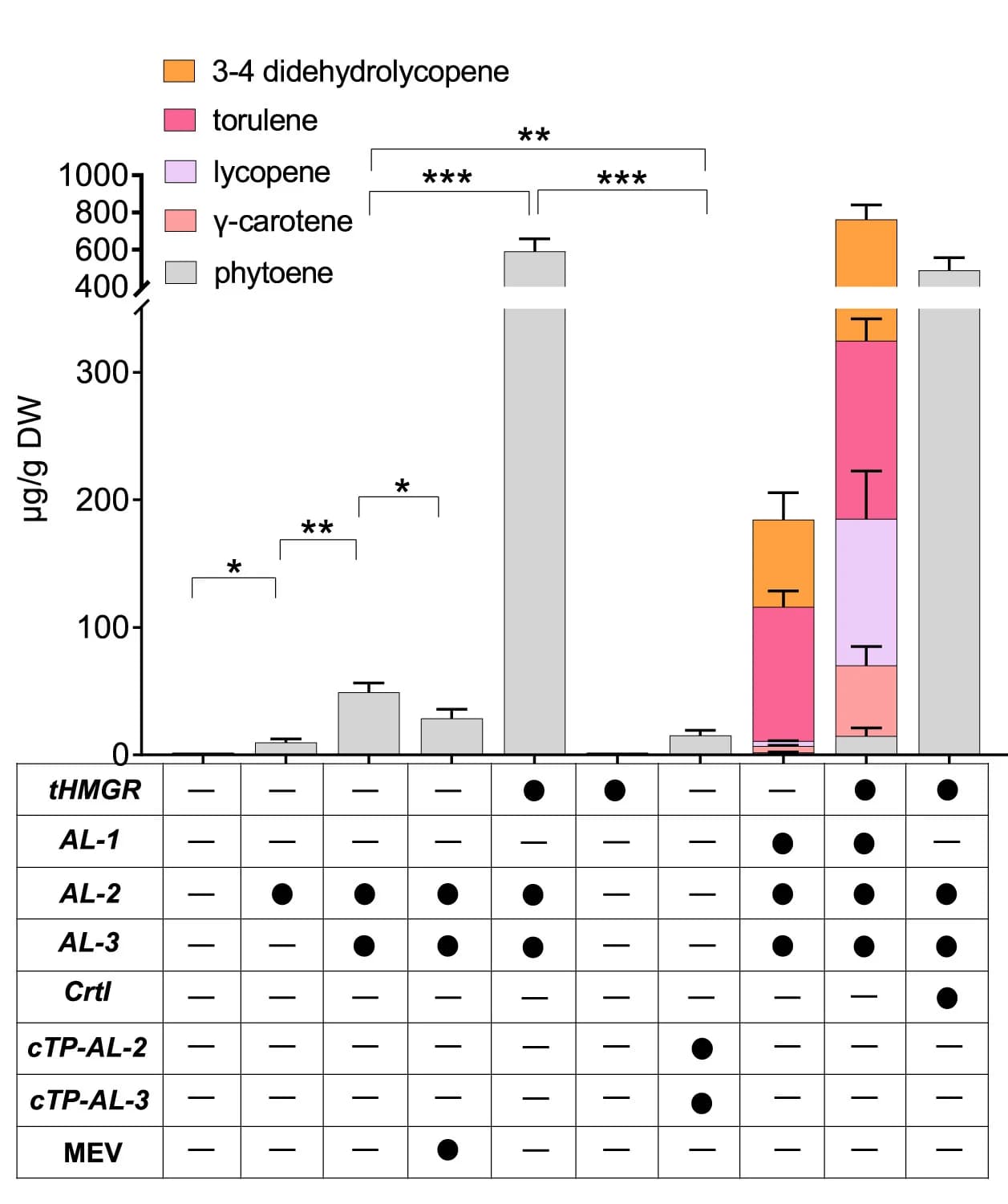

Levels of phytoene, lycopene, -carotene, torulene, and 3-4 didehydrolycopene in leaf areas agro-infiltrated with different gene combinations indicated left below the bars (minus sign [], not included; black circle [], included). MEV is a chemical inhibitor of the MVA pathways. Gene names and functions are defined in the legend ofFigure 1. The cTP-AL-2 or cTP-AL-3 correspond to the fungal enzymes (AL-2 and AL-3) fused with plastid transient peptide. CrtI is a bacterial phytoene desaturase. Bar colors represent different carotenoids as indicated in the key. Data represent a mean SD of three independent pools of agro-infiltratedNicotianaplants.
