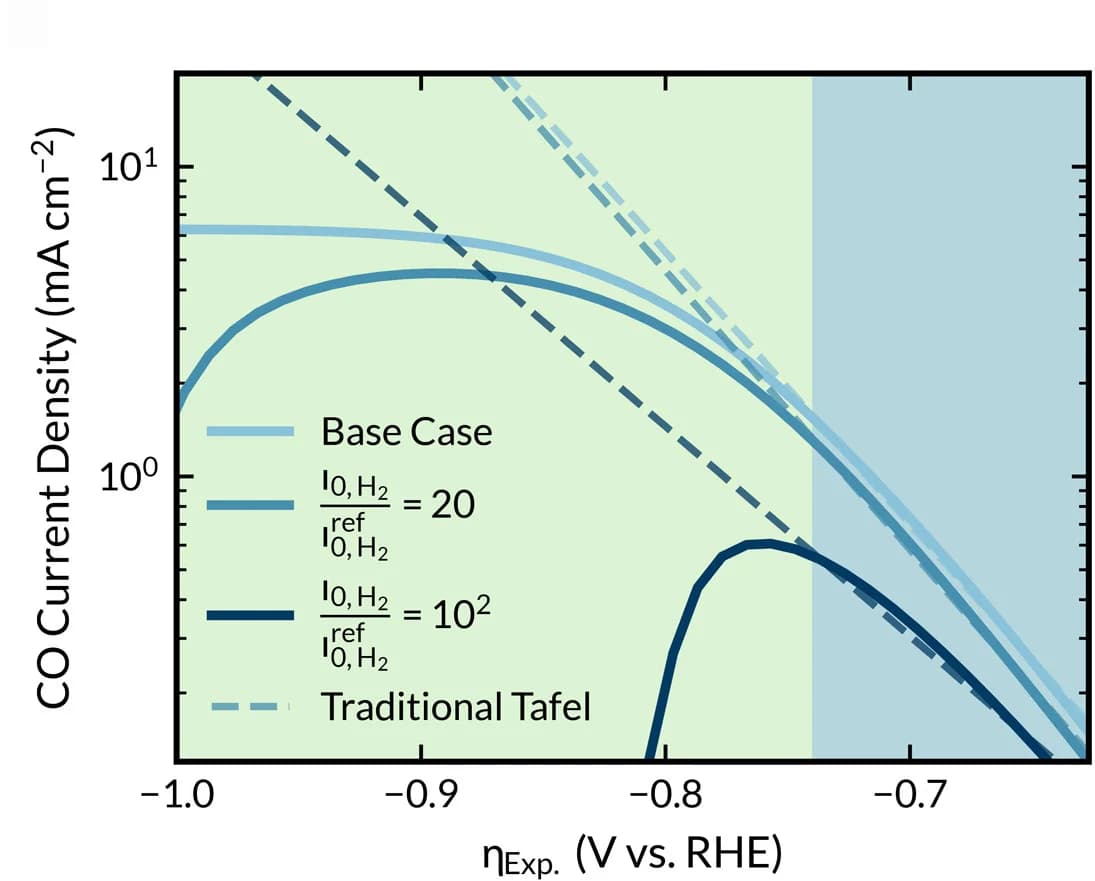

Accuracy of Tafel analysis under varying mass-transport regimes with a constant CO Tafel slope. Effect of (B) i0,H2 on CO Tafel analysis. Solid lines represent simulations where all parameters are fixed except for i0,H2. In (B) dashed lines represent linear regression fits from traditional Tafel analysis (see supplemental information section definition of traditional Tafel analysis) (Tafel region in blue, and mass transport region in green).
