Line Plot from Scientific Research

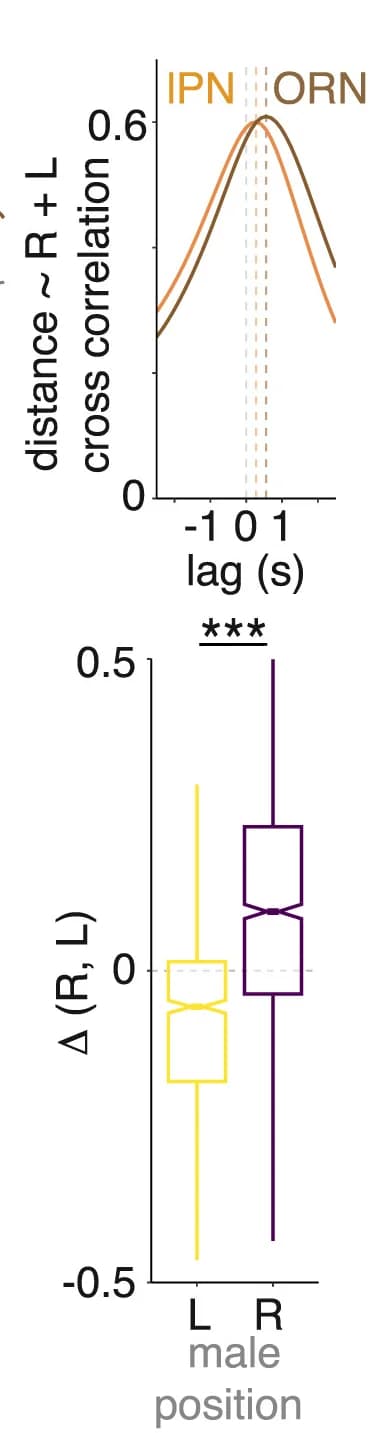

Cross-correlogram of summed right, left ORN (brown), and DA1 lPN GCaMP6f (orange) responses and male distance, based on data from 6 flies for both cell types. Traces shown inFigures S3B and S3C. Positive lag corresponds to the male distance leading and neural responses following. Lag(ORN) = 556 ms, lag(lPN) = 278 ms.
