Illustration from Scientific Research

Open access visualization of Illustration, Workflow, X-rays, Doppler Effect, Spectral Line
CC-BY
609
Views
0
Likes

Citation

DOI: 10.1038/s41586-023-06910-y

DOI

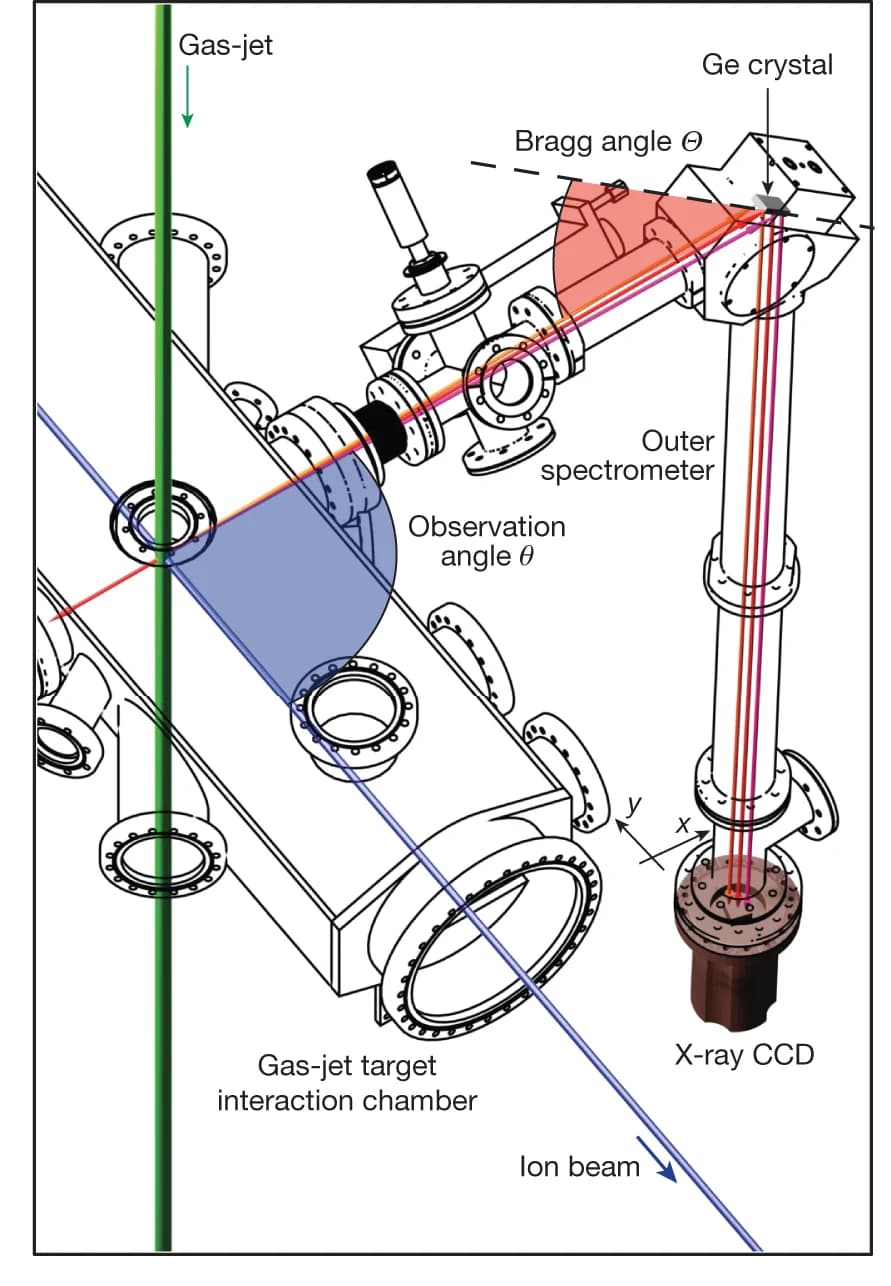

X-rays emitted at slightly different angles have different energy values because of the relativistic Doppler effect corresponding to different Bragg angles. This results in a slanted spectral line on the CCD ( d ).

#Illustration#Workflow#X-rays#Doppler Effect#Spectral Line#CCD
