Sankey from Scientific Research
CC-BY
10
Views
0
Likes
Citation

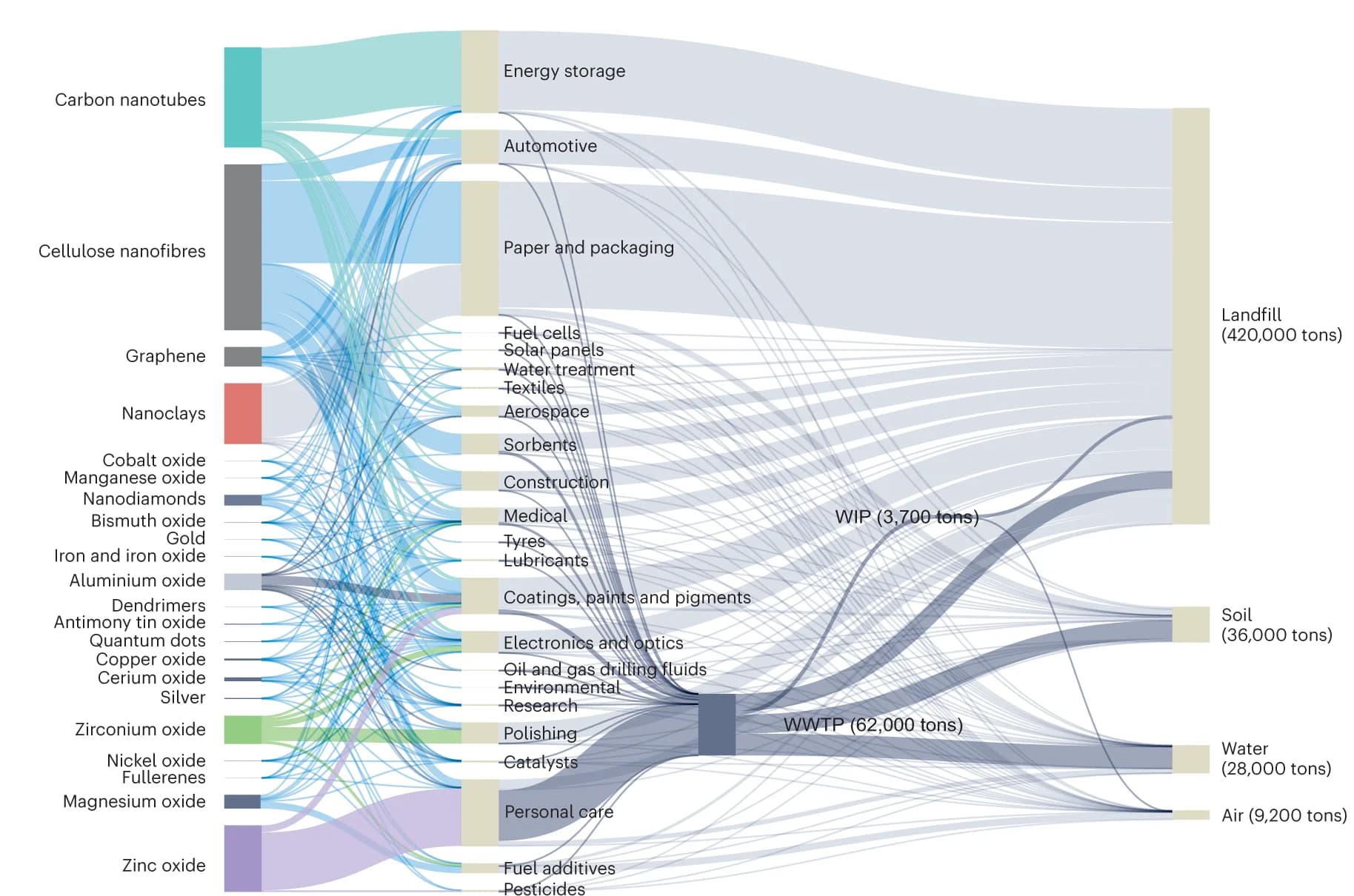

Lower-production nanomaterials: The flow of lower-production nanomaterials in 2031 through the global economy, from production (left side) to applications (mid-yellow boxes), to final compartments (right side, in brown), with some passing through wastewater treatment plants (WWTP) and waste incineration plants (WIP).
#Sankey#Nanomaterials#Global Economy#Production#Applications#Wastewater Treatment Plants#Waste Incineration Plants
