Line Plot from Scientific Research

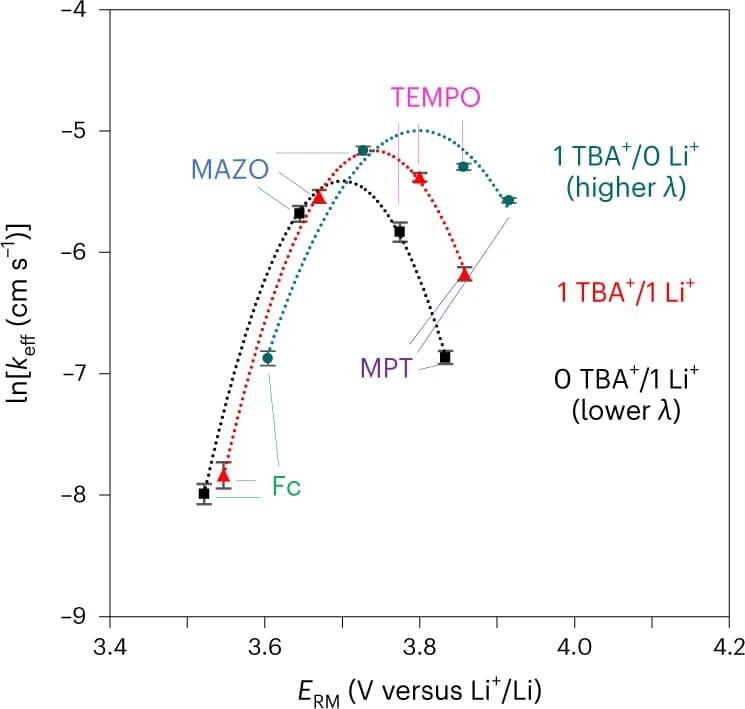

Plot of ln k eff (RM + reaction with Li 2 O 2 ) as a function of E RM , for varying ratios of TBA + /Li + while the total concentration of bis(trifluoromethane)sulfonimide (TFSI - ) in tetraglyme is kept constant. Error bars show 1 s.d. from an average of three measurements. The dotted line is the fit to the data by the Marcus equation using the least-squares method.
