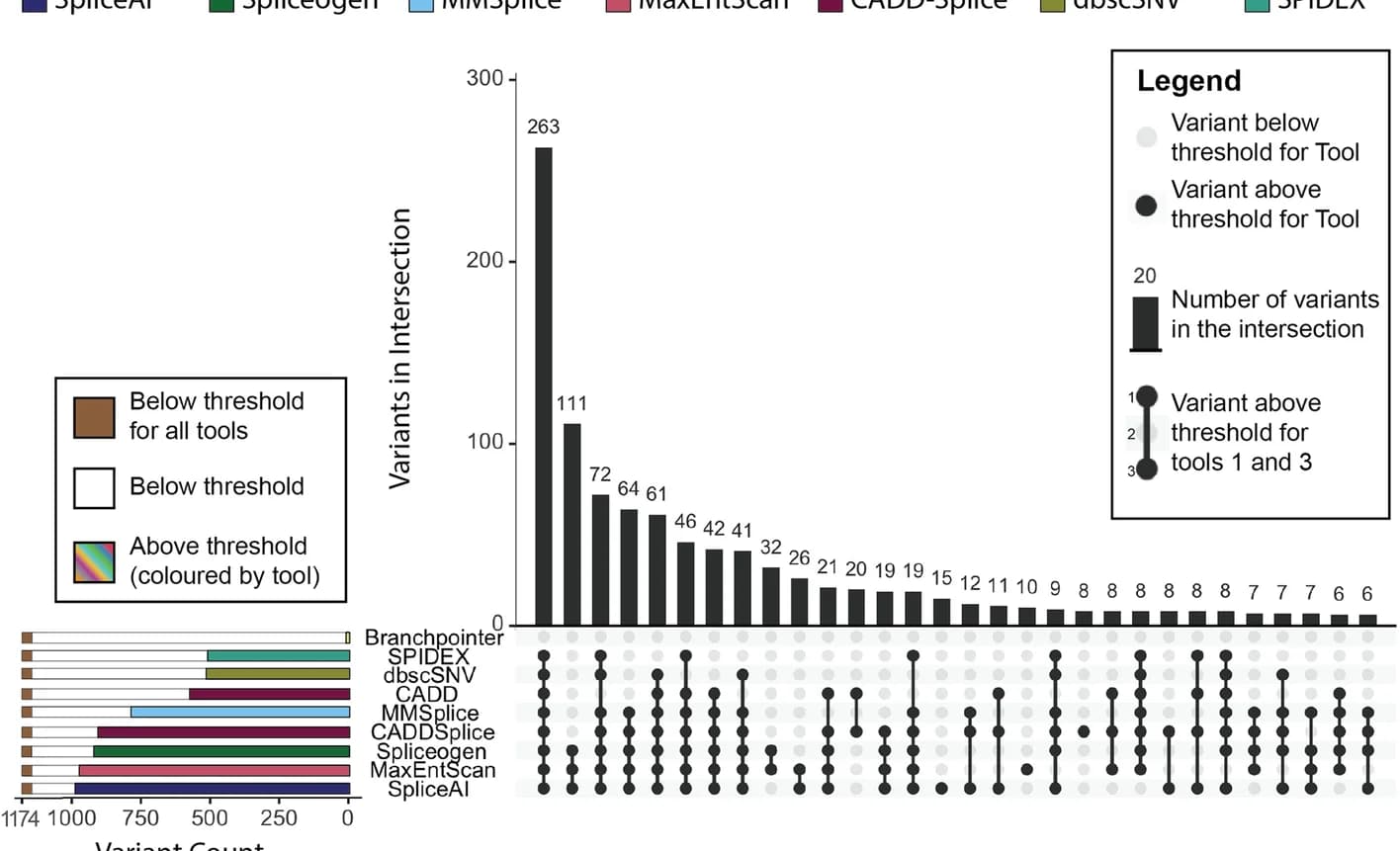

Comparison of variants identified by splicing tools. The overlap of known splice-altering variants that are also predicted to be splice-altering by each in silico tool (i.e., above threshold) are represented as an UpSet plot [ 21 ]. For each comparison (the top 30 are shown), the number of predicted splice-altering variants (vertical bars) and the tool(s) that identified these variants (solid dots) are shown. The horizontal bars show the total splice-altering variant identification rate of each tool, coloured as per legend
