Workflow from Scientific Research

Open access visualization of Workflow, Flowchart, Illustration, MELS Measurement, Equivalent Circuit Model
CC-BY
0
Views
0
Likes

Citation

DOI: 10.1002/aenm.202300394

DOI

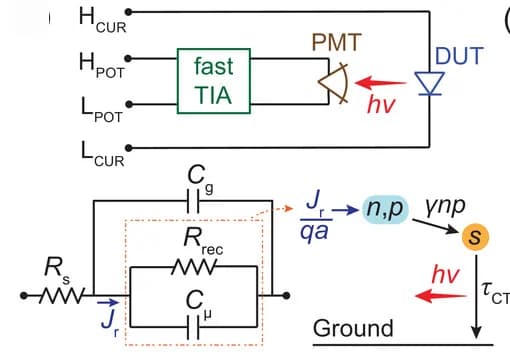

Experimental setup of the MELS measurement (top) along with the equivalent circuit model of the device and a diagram of the recombination kinetics taking place in its emissive layer (corresponding to the orange boxed region of the equivalent circuit). TIA: transimpedance amplifier; PMT: photomultiplier tube; DUT: device under test.

#Workflow#Flowchart#Illustration#MELS Measurement#Equivalent Circuit Model#Recombination Kinetics#Transimpedance Amplifier#Photomultiplier Tube#Device Under Test
