Microscopy from Scientific Research

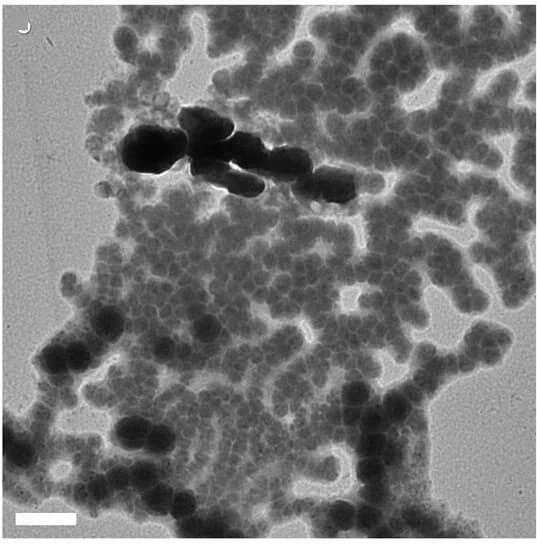

STXM composition maps of PTQ10:Y6 NPs with 200 C thermal treatment: position-matched TEM image. All scale bars are 500 nm. The color contrast is scaled such that light colors correspond to higher component concentrations. For the mass plots (a,b,f,g,k,l) the color scale bars indicate concentration of component in milligrams per centimeter square.

DOI
