Line Plot from Scientific Research

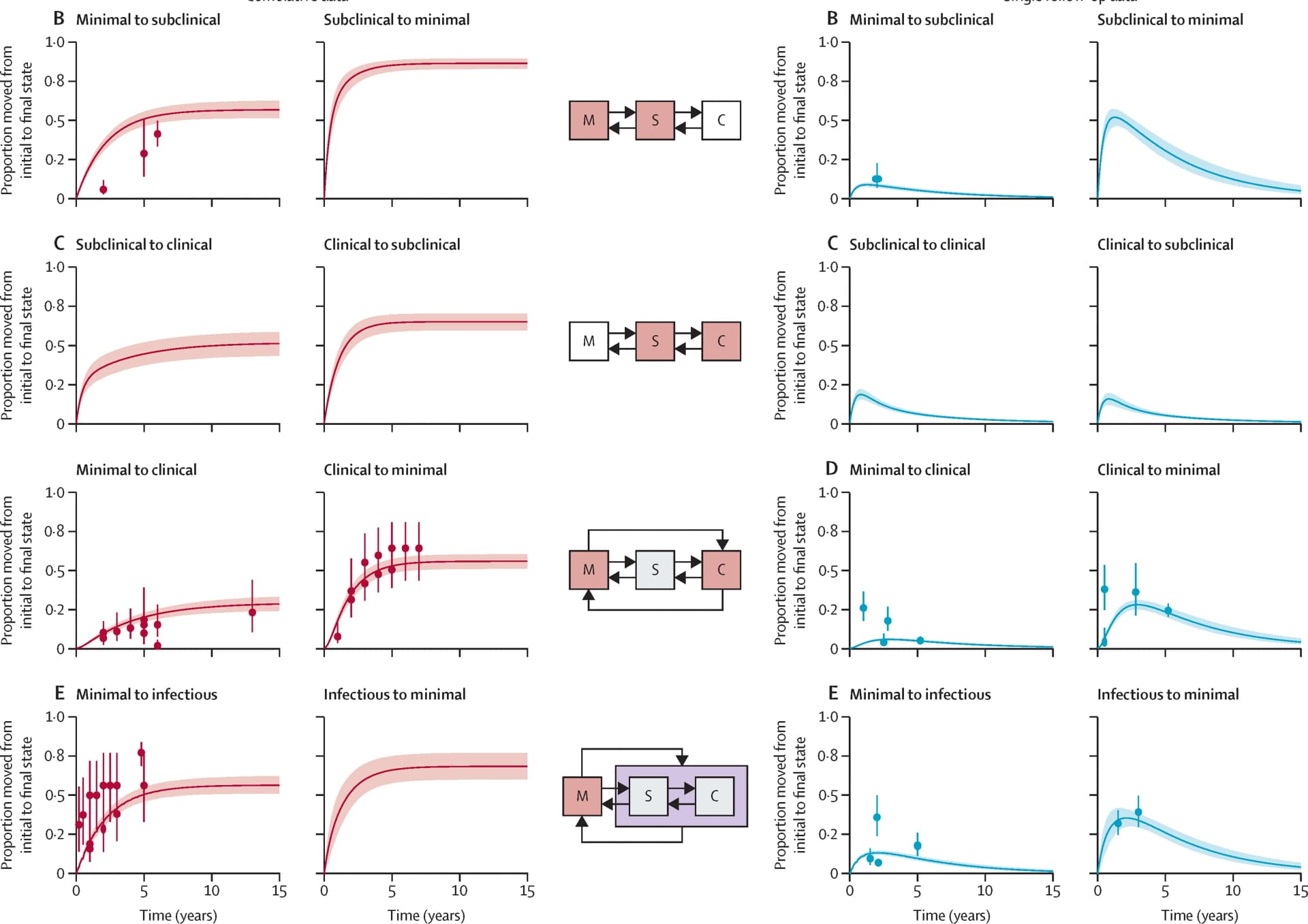

The middle column is a visual description of the transition being fitted on each row, where M=minimal, S=subclinical, and C=clinical. The graphs in the two left hand columns are the fits for the cumulative data, and those in the two right hand columns are the fits for the single follow-up data. Rows show progression and regression between minimal and clinical disease. The dots in each graph are the point values provided by each study, with error bars representing the weighting of that point value as provided in the fit (appendix pp 1819). The solid line represents the median trajectory of that transition, with the shaded area representing the 95% uncertainty interval.
