Bar Plot from Scientific Research

Open access visualization of Bar Plot, Stacked Bar Plot, Chemical Shift Perturbation, Peak Intensity, GHR-ICD270-370
CC-BY
0
Views
0
Likes
DOI

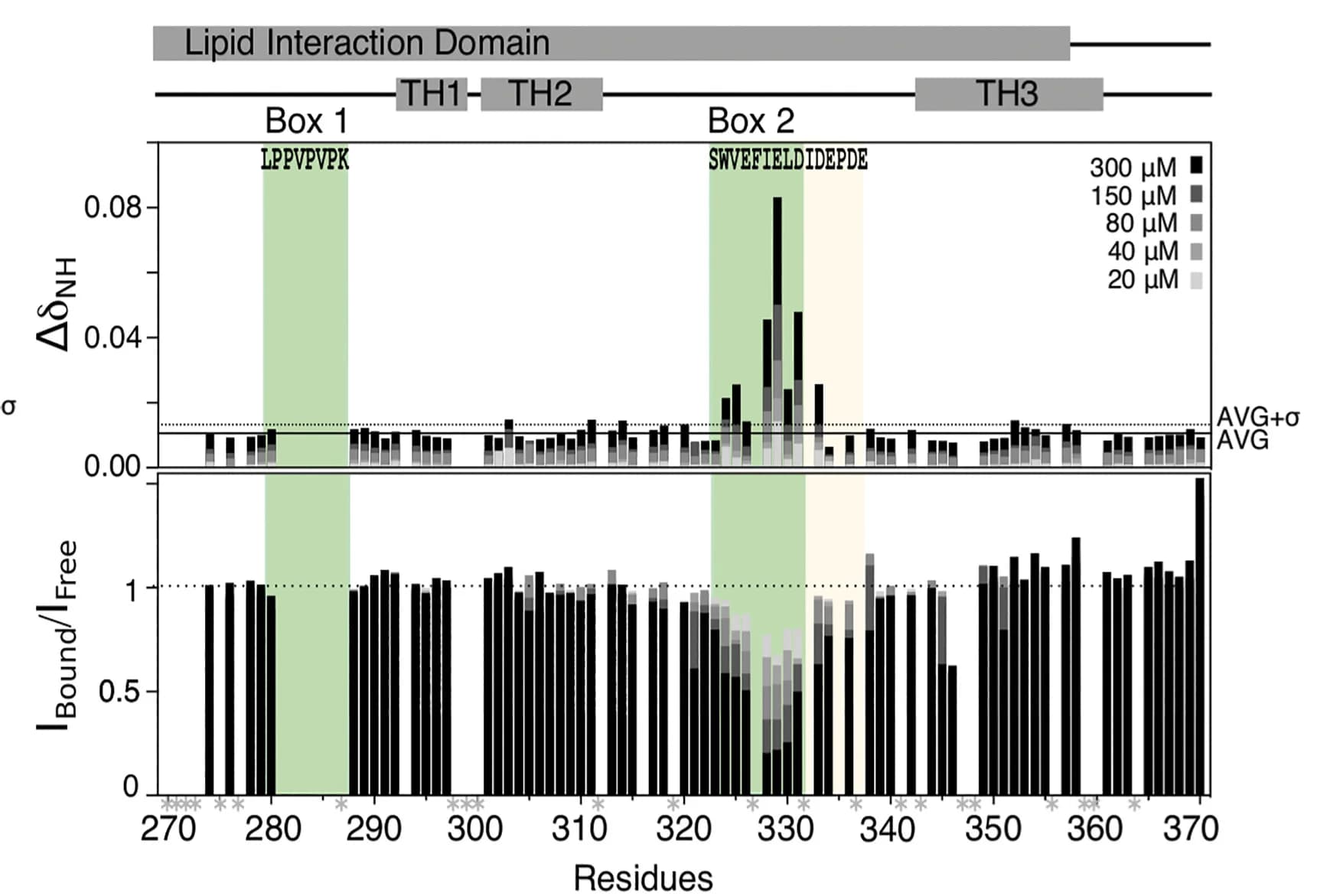

Chemical shift perturbations (delta-deltaNH) and peak intensity changes (Ibound/IFree) of 15N-GHR-ICD270-370 titrated with LYN2. Disappearing and overlapping signals are indicated by black and gray stars, respectively. Box1 and Box2 are highlighted in green and the main binding site in yellow. On top, the lipid interaction domain and transient alpha-helices (TH1-3) within GHR-ICD270-370 are indicated.
