Line Plot from Scientific Research

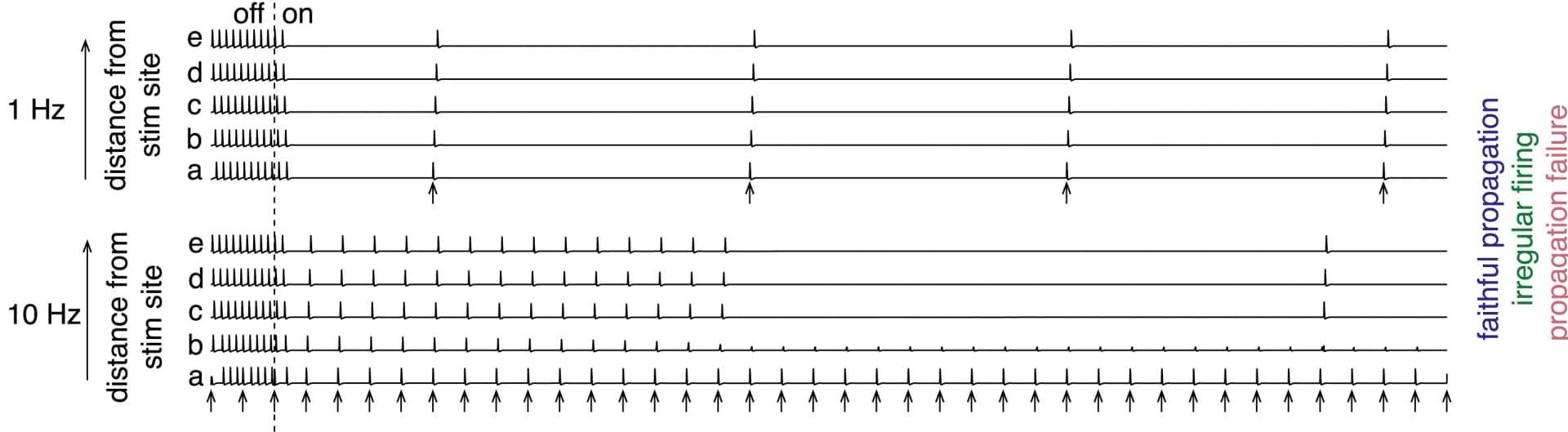

The effect of the slow inactivation gate on the propagation of spikes at different frequencies. Top to bottom, 1 and 10 Hz, respectively. Traces represent Vms at different sites with distance from the stimulation site (as inFigure 2). Before the dashed vertical line, the igate was clamped to be 1.

DOI
