Line Plot from Scientific Research

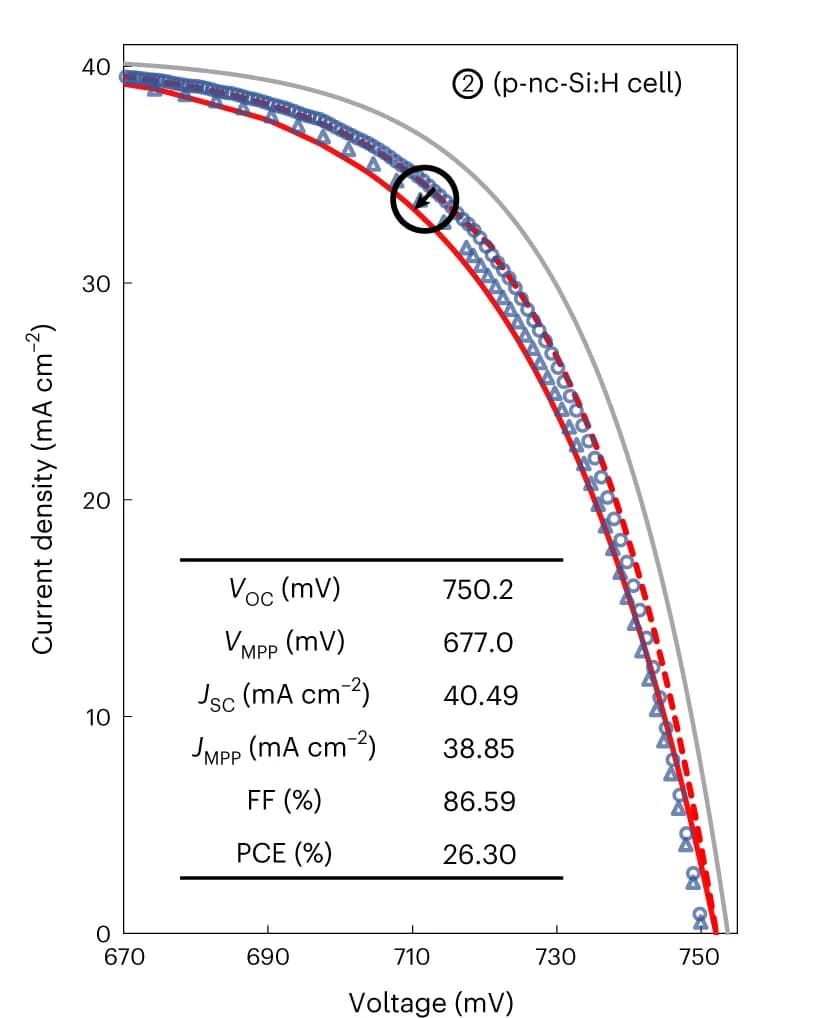

Experimental (Exp.) and fitted (Fit.) J–V curves for the p-nc-Si:H cell (cell 2 in Fig. 1). The fitted curves are derived from the Quokka2 simulations (Methods). Intrinsic J–V curves are obtained according to the Richter et al. model of intrinsic recombination with photon recycling (photon recycling coefficient of 0.6) 65, 71. The black arrows between the Suns–VOC and light J–V curves indicate the series resistance of solar cells. Insets: the PV parameters certified by ISFH.
