Workflow from Scientific Research

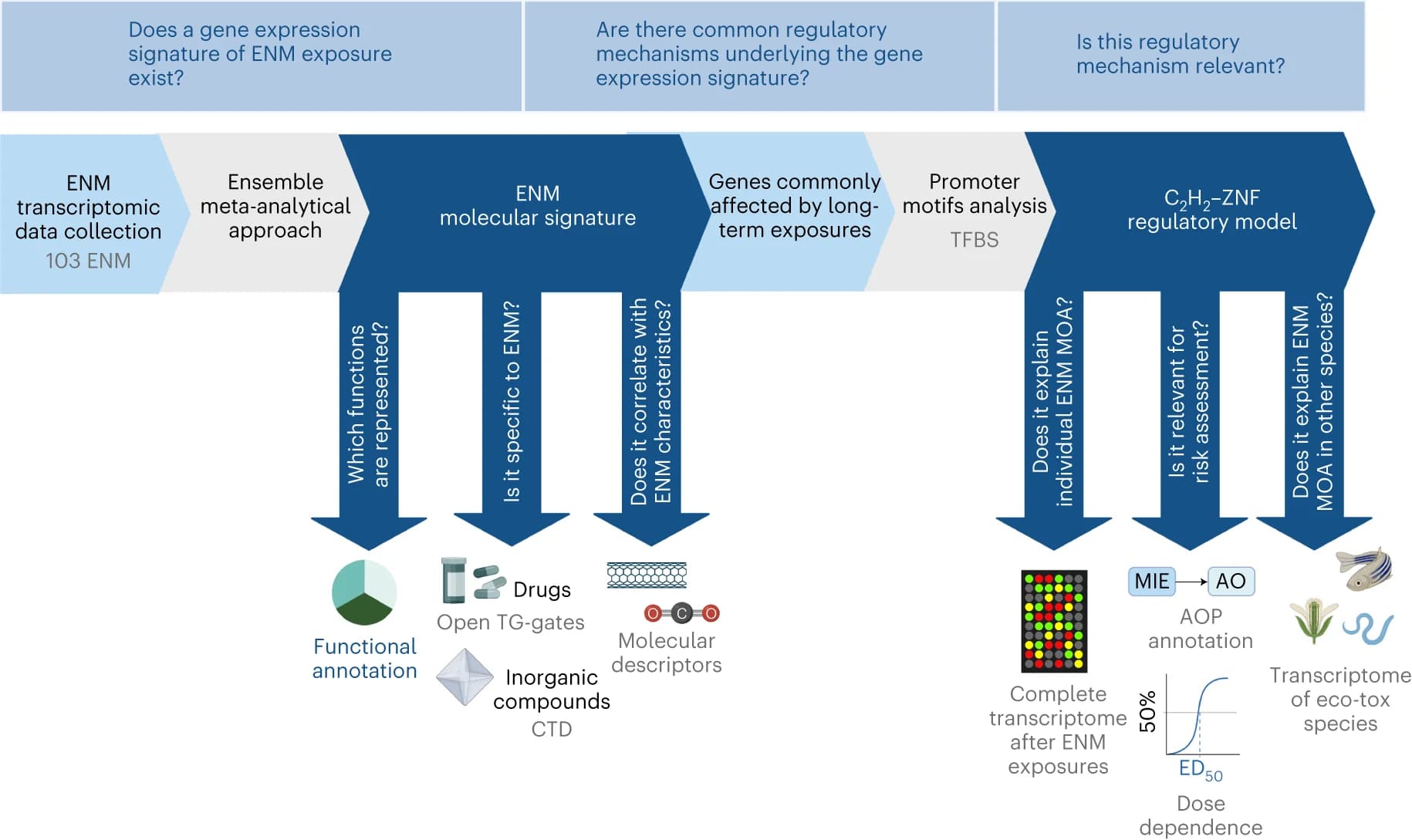

Study workflow, including the data used, their sources (grey text) and methodological steps (light grey arrow boxes and blue text). The light blue boxes at the top of the figure indicate the hypothesis underpinning the study. AO, adverse outcome. ED 50 , mediant effective dose.
