Line Plot from Scientific Research

Open access visualization of Line Plot, Density Plot, CLIP Experiment, Read Coverage Profile, Gaussian Fit
CC-BY
0
Views
0
Likes
DOI

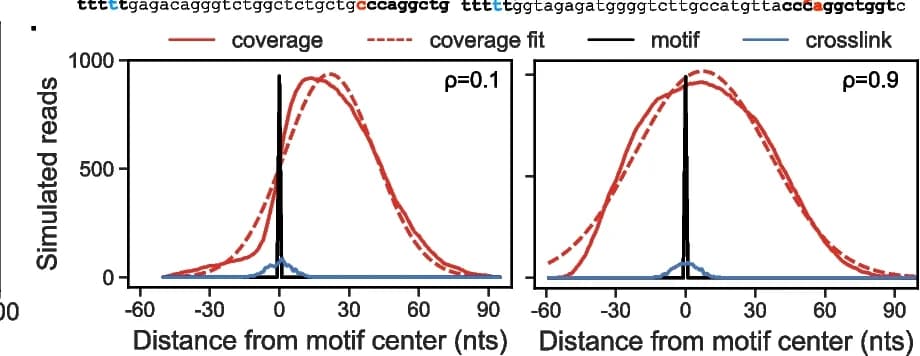

Results of CLIP experiment simulations, showing the read coverage profile (full red line), corresponding Gaussian fit (dashed red line), and frequency of crosslinks (blue) with respect to the RBP-specific motif (black, centered on position 0), for low (0.1, left), and high (0.9, right) probability of reverse transcriptase readthrough ( \(\rho\) )
