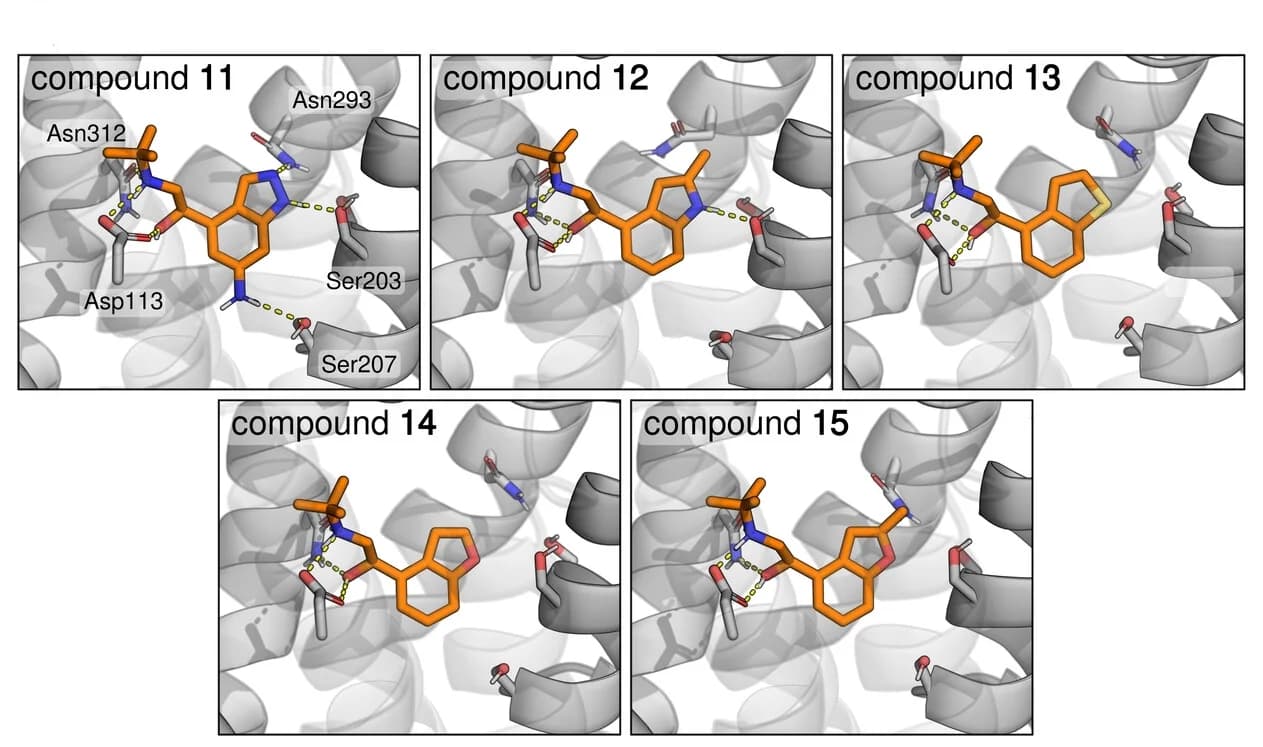

Predicted binding modes of compounds11–15. Structures correspond to snapshots after an MD simulation of the 2R active conformation. The 2R is shown as a gray cartoon, and key residues are shown as sticks. All ligands are represented as sticks with orange carbon atoms. Hydrogen bonds are depicted as yellow dashed lines.
