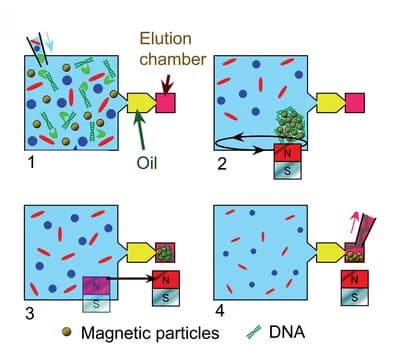

Immiscible filtration assisted by surface tension. 1: Sample loading and cell lysis; 2: mixing of superparamagnetic particles with sample for DNA binding; 3: transfer of superparamagnetic particles through the immiscible phase for washing; 4: elution of DNA from the superparamagnetic particles followed by off-chip analysis. Reproduced with permission.[59]Copyright 2016, Royal Society of Chemistry.
