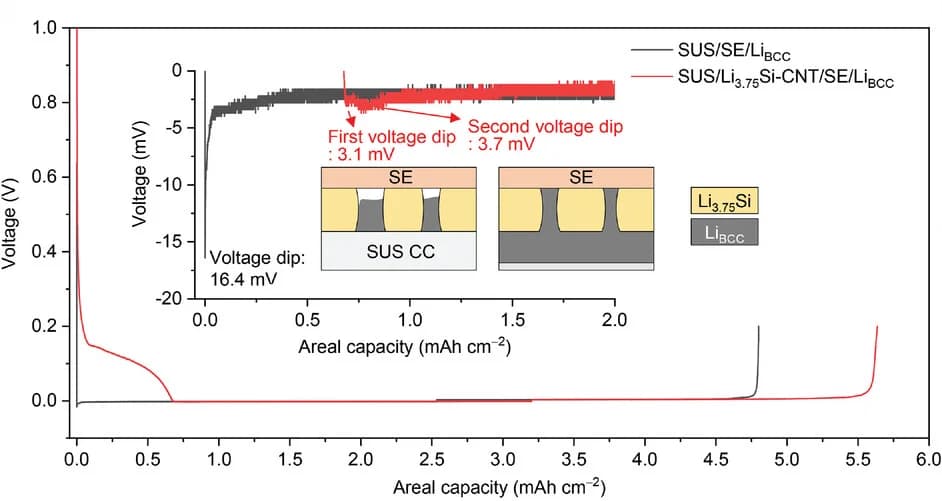

Voltage profiles of half-cells (SUS/Li3.75Si-CNT/SE/LiBCCand SUS/SE/LiBCC) at the first cycle. The inset shows a magnified voltage profile indicating the overpotential of each cell and a schematic illustration of the Li metal deposition process in the Li3.75Si-CNT layer located between SE and the CC. 3.1 and 16.4 mV indicate the first voltage dip of SUS/Li3.75Si-CNT/SE/LiBCCand SUS/SE/LiBCC, respectively.
