Scatter Plot from Scientific Research

Open access visualization of Scatter Plot, 1H-15N-HSQC spectrum, BTN2A1-IgV, BTN3A1-IgV, Chemical Shift Perturbation
CC-BY
1
Views
0
Likes

Citation

DOI: 10.1016/j.celrep.2023.112321

DOI

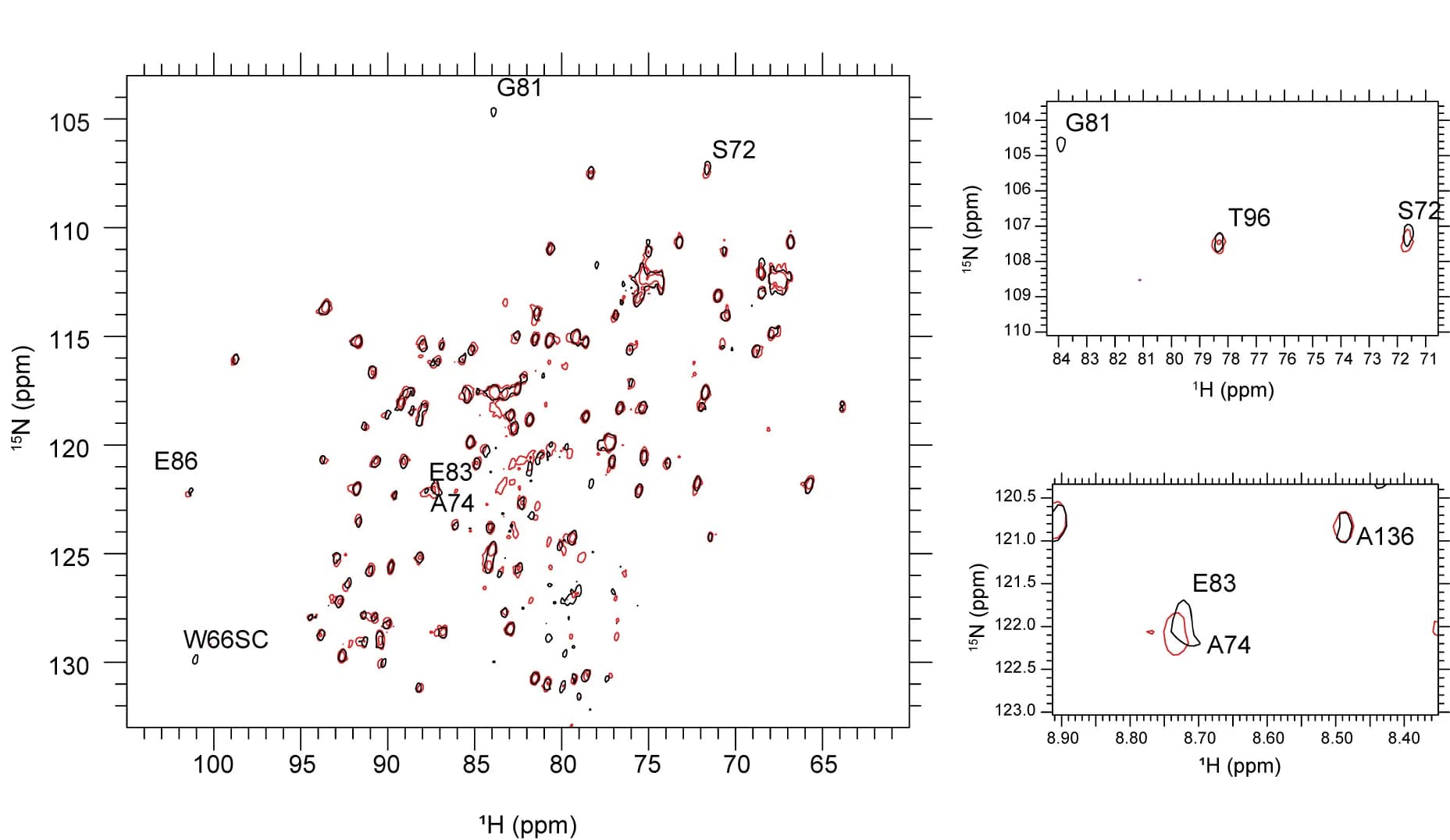

Overlay of1H-15N-HSQC spectra of 80 μM15N-13C-labeled BTN2A1-IgV (black) with 80 μM15N-13C-labeled BTN2A1-IgV plus 400 μM unlabeled BTN3A1-IgV (red). Residues that show significant chemical shift perturbations and those that show dramatic line broadening due to being in intermediate exchange are labeled and shown in insets.

#Scatter Plot#1H-15N-HSQC spectrum#BTN2A1-IgV#BTN3A1-IgV#Chemical Shift Perturbation
