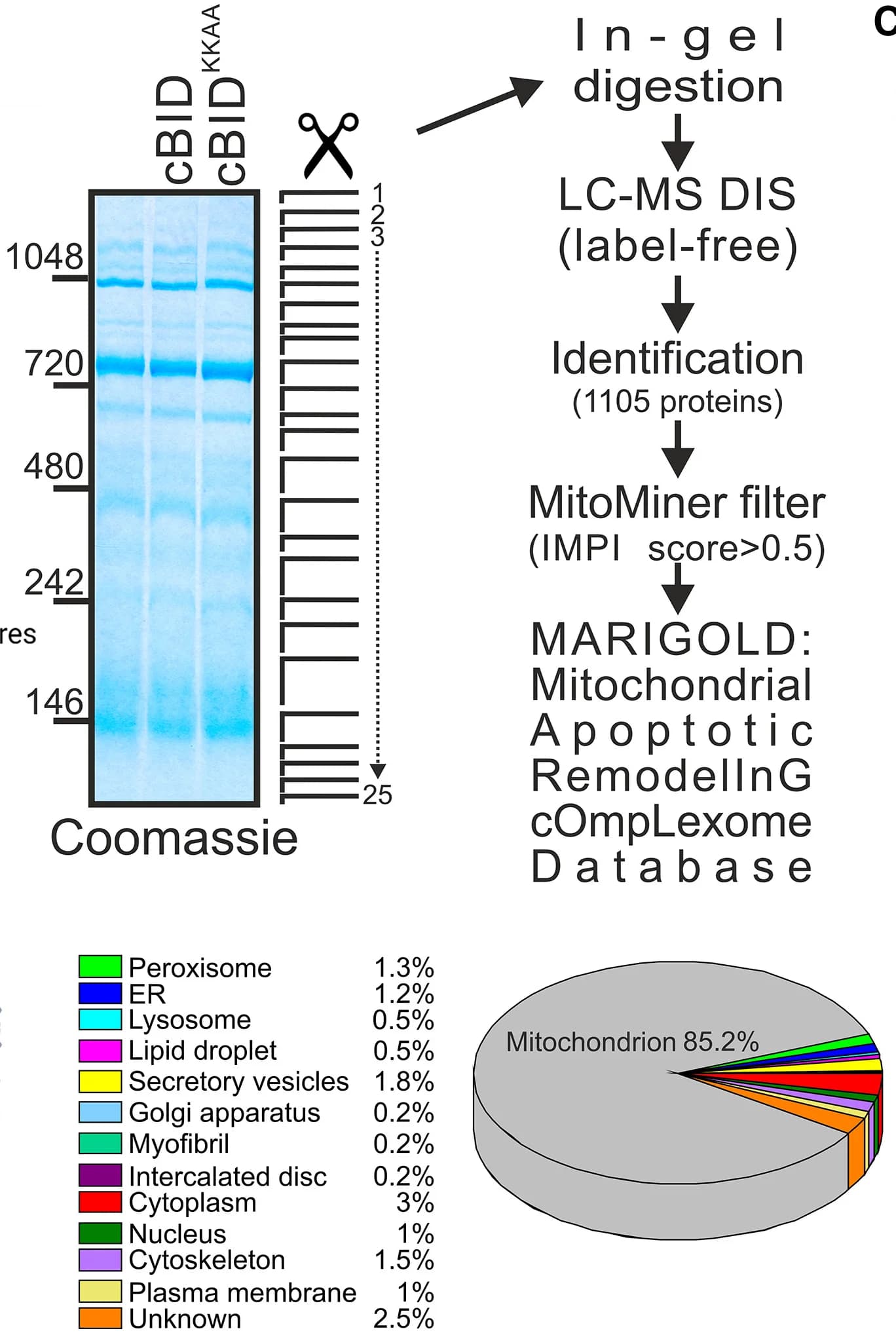

Coomassie staining after BNGE of mitochondrial protein complexes extracted from mitochondria isolated from mouse heart and untreated or treated with cBID or cBIDKKAA(n= 3 technical replicates from 3 biological replicates for each condition) The lines on the right identify the bands sliced (125) and separately digested with trypsin before label-free analysis by LC-MS DiS, which led to the identification of 1,105 proteins. MitoMiner filtering was used to exclude proteins with an IMPI score ≤ 0.5. From this analysis, we obtained the Mitochondrial Apoptotic RemodelInG cOmpLexome Database (MARIGOLD). MARIGOLD includes mostly mitochondrial proteins as well as proteins assigned to organelles and compartments illustrated in the pie graph.
