Heatmap from Scientific Research

CC-BY
2
Views
0
Likes
Citation

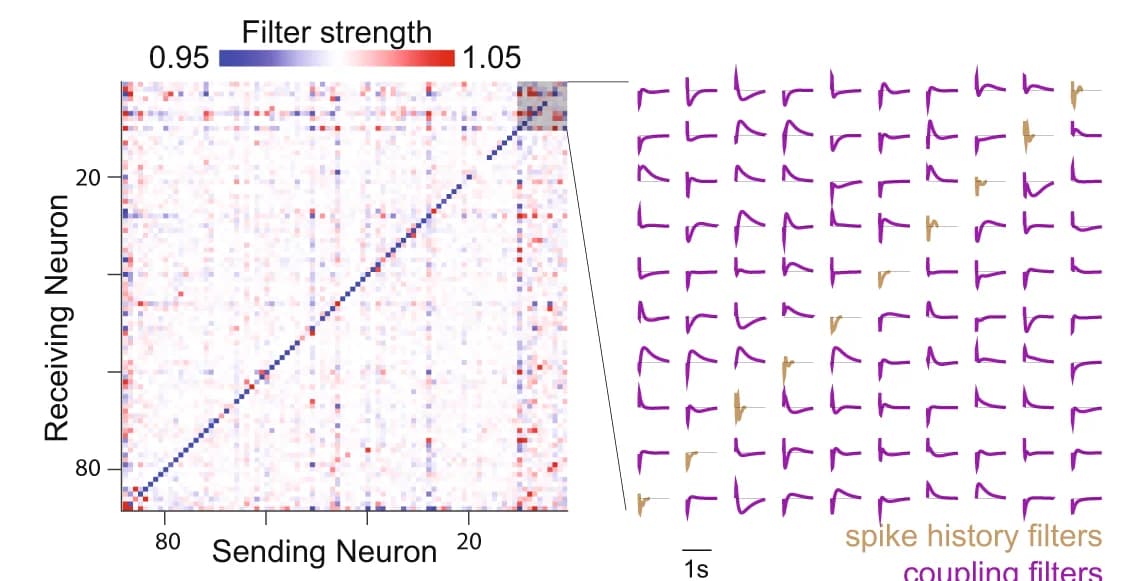

Left: The strength of the coupling filters between all pairs of neurons in the population shown in c . Strength of the filter was computed by taking the total area under the filter. A strength greater than one corresponds to excitatory coupling whereas less than one corresponds to inhibitory coupling. The diagonal elements correspond to the strength of the spike-history filter (self-coupling) as a special case. Right: Details of the coupling (off-diagonal) and spike-history filters of a subset of the neural population, highlighting the diversity in the filter profiles across neuronal pairs.
#Heatmap#Line Plot#Coupling Filters#Neuron#Excitatory Coupling#Inhibitory Coupling#Spike-history Filter
