Line Plot from Scientific Research

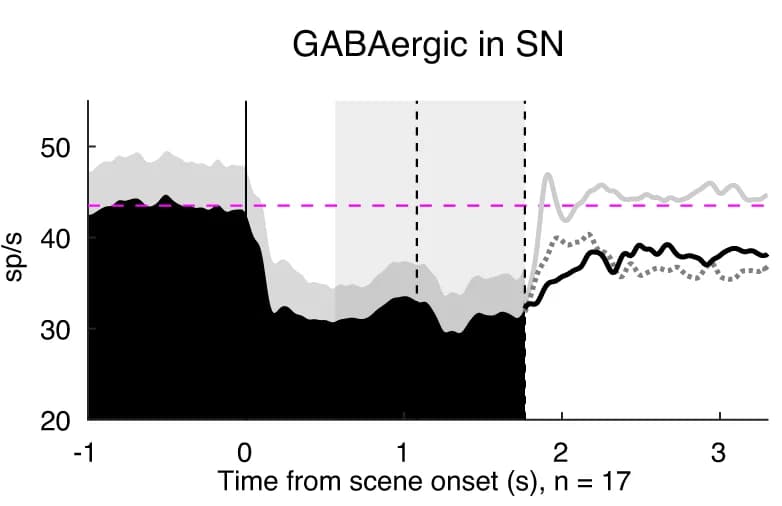

Population activity for amygdala (excited responses), putative GABAergic (inhibited responses), or putative DA (excited responses) neurons in the Pavlovian task (PR environment). The shaded gray area indicates the spike-count window used to calculate average activities for the tonic component of the scene responses (01.2 s before the CS onset). Tonic excitation was shown in many of amygdala and putative DA neurons. Tonic inhibition was shown in many of putative GABAergic neurons. The shaded red area indicates +1 SEM for the averaged population activity.
