Volcano Plot from Scientific Research

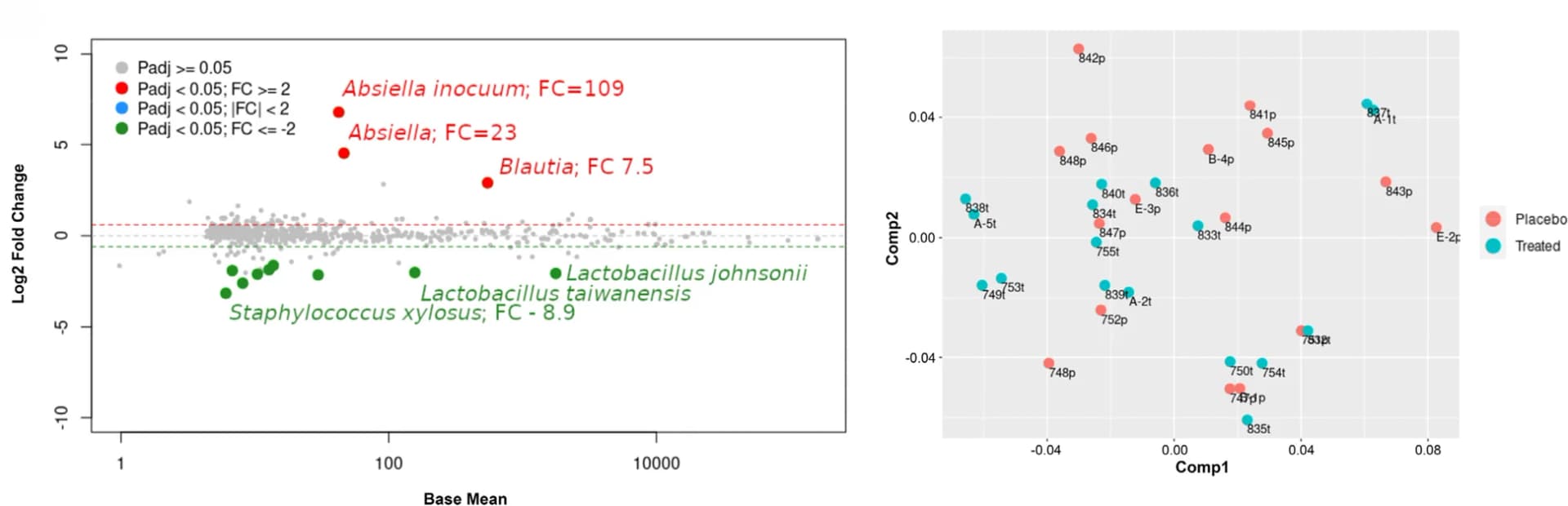

Comparisons between animals in the placebo and cART groups show that the abundance of some taxa was significantly different in the colitis model IL-10-/- but not the SvEv wild type. (Left panels show differential abundance analyses with the package DESeq2; red and green dots represent taxa with increased or decreased abundance, respectively, in the ART group when compared against placebo, and only taxa with a fold change difference of 2 or more are shown. Right panels represent the first and second components of a principal coordinate analysis using BrayCurtis distances; number of animals in the placebo and antiviral therapy groups, respectively, were IL10-/-: n = 19 and n = 21; SvEv: n = 9 and n = 8)
